FaitalPro 12FH510 |
LF Loudspeakers 8 ohms |
12" - 500 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance; 6.4 Ohm
• AES Power Handling (1): 500 W
• Maximum Power Handling (2): 1000 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 45÷3150 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 18.5 mm (0.73 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.2 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3); M-Roll
• NET Air Volume filled by Loudspeaker: 2.9 dm^3 (0.102 ft^3)
• Spider Profile: 1x variable height waves

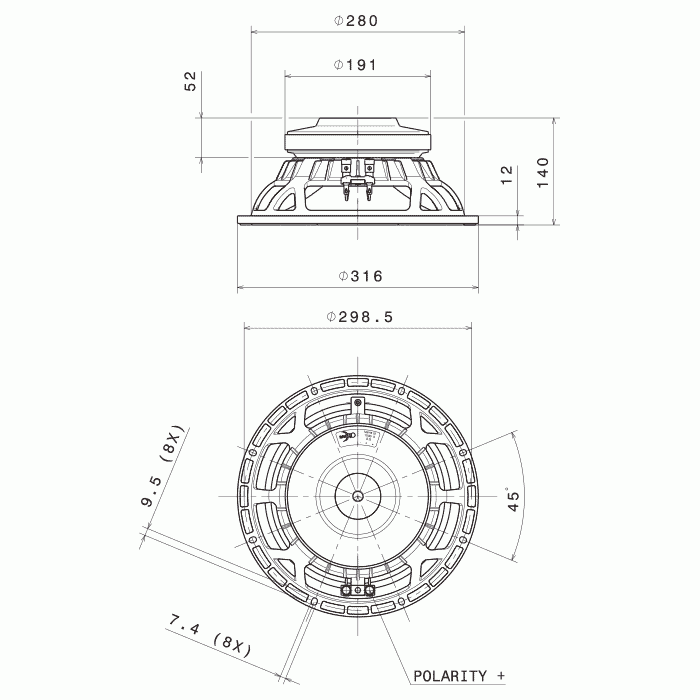

NOMINAL SPECIFICATIONS
• Nominal Diameter: 300 mm (12 in)
• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 298.5 mm (11.75 in)
• Baffle Cutout Diameter: 282 mm (11.10 in)
• Depth: 140 mm (5.51 in)
• Flange and Gasket Thickness: 12 mm (0.47 in)
• Net Weight: 7.8 Kg (17.2 lb)
• Shipping Box (Single Carton Box): 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in)
• Shipping Weight: 8.7 Kg (19.2 lb)
THIELE AND SMALL PARAMETERS
• .Fs: 45 Hz
• Re: 5.1 Ohm
• Qes: 0.25
• Qms: 10.9
• Qts: 0.24
• Vas: 81.3 dm^3 (2.87 ft^3)
• Sd: 533 cm^2 (82.62 in^2)
• Xmax (4): 7.50 mm
• Xdamage (5): 21.5 mm
• Mms: 61.0 g
• Bl: 18.9 N/A
• Le: 0.9 mH
• Mmd: 47.1 g
• Cms: 0.21 mm/N
• Rms: 1.6 Kg/s
• Eta Zero: 2.92%
• EBP: 180 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03004078
