FaitalPro 12FH500 |
8 ohms LF Loudspeaker |
12" - 500 W - 97 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.4 Ohm
• AES Power Handling (1): 500 W
• Maximum Power Handling (2): 1000 W
• Sensitivity (1W/1m): 97 dB
• Frequency Range: 45÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 18.5 mm (0.73 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.2 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): M-Roll
• NET Air Volume filled by Loudspeaker: 2.3 dm^3 (0.081 ft^3)
• Spider Profile: 1x variable height waves

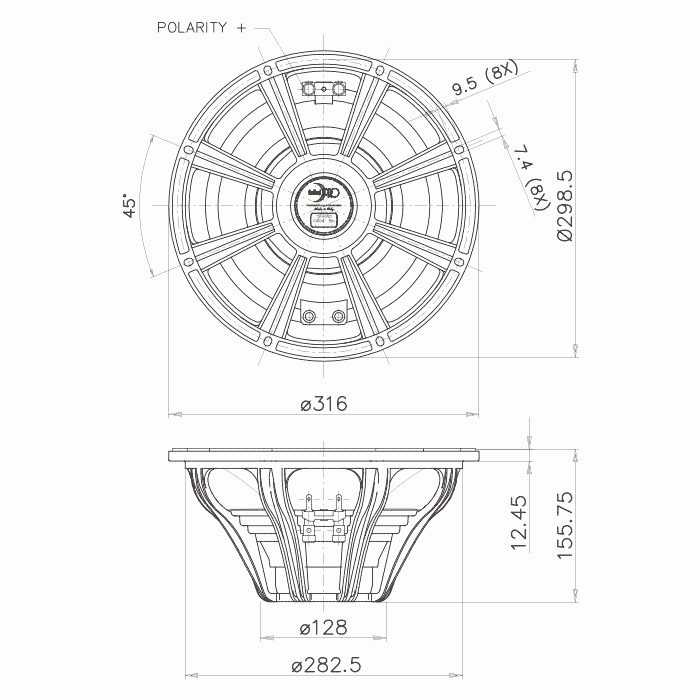

NOMINAL SPECIFICATIONS
• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 298.5 mm (11.75 in)
• Baffle Cutout Diameter: 284 mm (11.18 in)
• Depth: 155.75 mm (6.13 in)
• Flange and Gasket Thickness: 12.45 mm (0.49 in)
• Net Weight: 3.9 Kg (8.6 lb)
• Shipping Box (Single Carton Box): 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in)
• Shipping Weight: 5 Kg (11.0 lb)
THIELE AND SMALL PARAMETERS
• Fs: 45 Hz
• Re: 5.1 Ohm
• Qes: 0.26
• Qms: 6.9
• Qts: 0.25
• Vas: 87.3 dm^3 (3.08 ft^3)
• Sd: 529 cm^2 (82.00 in^2)
• Xmax (4): 7.50 mm
• Xdamage (5): 21.55 mm
• Mms: 56.0 g
• Bl: 17.5 N/A
• Le: 0.83 mH
• Mmd: 42.2 g
• Cms: 0.22 mm/N
• Rms: 2.3 Kg/s
• Eta Zero: 2.93 %
• EBP: 173 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03003925
FaitalPro 12FH500
LF Loudspeakers 8 ohms
