FaitalPro 10RS350 |
LF Loudspeaker 8 ohms |
10" - 300 W - 91 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6 Ohm
• AES Power Handling (1): 300 W
• Maximum Power Handling (2): 600 W
• Sensitivity (1W/1m): 91 dB
• Frequency Range: 40÷2500 Hz
• Voice Coil Diameter: 65 mm (2.56 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 17.4 mm (0.69 in)
• Magnetic Gap Depth: 8 mm (0.31 in).
• Flux Density: 1.2 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 1.4 dm^3 (0.049 ft^3)
• Spider Profile: 1x variable height waves

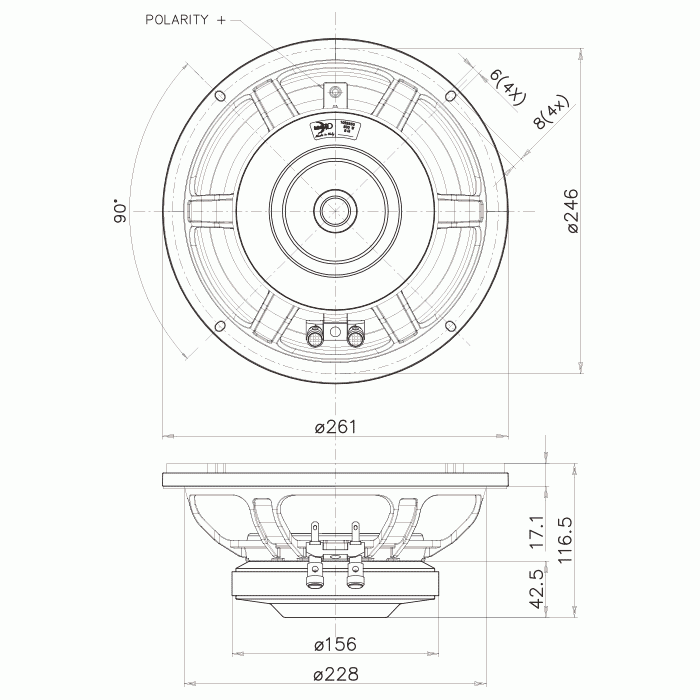

NOMINAL SPECIFICATIONS
• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 230 mm (9.06 in)
• Depth: 116.5 mm (4.59 in)
• Flange and Gasket Thickness: 17.1 mm (0.67 in)
• Net Weight: 4.2 Kg (9.3 lb)
• Shipping Box (Single Carton Box): 282 x 280 x 140 mm | (11.0 x 11.0 x 5.5 in)
• Shipping Weight: 4.8 Kg (10.6 lb)
THIELE AND SMALL PARAMETERS
• Fs: 40 Hz
• Re: 5.3 Ohm
• Qes: 0.4
• Qms: 5.2
• Qts: 0.37
• Vas: 44.3 dm^3 (1.57 ft^3)
• Sd: 344 cm^2 (53.32 in^2)
• Xmax (4): 7.37 mm
• Xdamage (5): 17.4 mm
• Mms: 59 g
• Bl: 14 N/A
• Le: 0.95 mH
• Mmd: 51.8 g
• Cms: 0.27 mm/N
• Rms: 2.9 Kg/s
• Eta Zero: 0.69 %
• EBP: 100 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 02504215
FaitalPro 10RS350
LF Loudspeakers 8 ohms
