FaitalPro 10PR300 |
LF Loudspeakers 8 ohms |
10" - 300 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.4 Ohm
• AES Power Handling (1): 300 W
• Maximum Power Handling (2): 600
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 60÷5000 Hz
• Voice Coil Diameter: 65 mm (2.5 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 12.5 mm (0.49 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Flux Density: 1.25 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3); M-Roll
• NET Air Volume filled by Loudspeaker: 1.3 dm^3 (0.046 ft^3)
• Spider Profile: 1x variable height waves

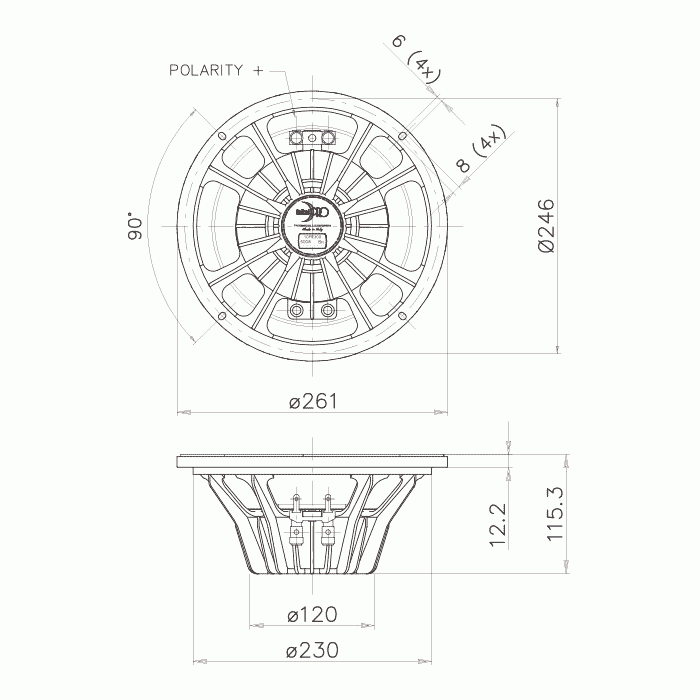

NOMINAL SPECIFICATIONS
• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 232 mm (9.13 in)
• Depth: 115.3 mm (4.54 in)
• Flange and Gasket Thickness: 12.2 mm (0.48 in)
• Net Weight: 2.3 Kg (5.1 lb)
• Shipping Box (Single Carton Box): 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
• Shipping Weight: 2.8 Kg (6.16 lb)
THIELE AND SMALL PARAMETERS
• Fs: 60 Hz
• Re: 5.4 Ohm
• Qes: 0.29
• Qms: 5.8
• Qts: 0.28
• Vas: 42.2 dm^3 (1.49 ft^3)
• Sd: 348 cm^2 (53.94 in^2)
• Xmax (4): 4.92 mm
• Xdamage (5): 14 mm
• Mms: 28.2 g
• Bl: 14.1 N/A
• Le: 0.6 mH
• Mmd: 20.0 g
• Cms: 0.25 mm/N
• Rms: 1.8 Kg/s
• Eta Zero: 3.06 %
• EBP: 207 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 02503931
FaitalPro 10PR300
LF Loudspeakers 8 ohms
