1" - 60 W - 107 dB

• 0.33 dm^3 (0.011 ft^3)
• Nominal Impedance: 8 Ohm
• Minimum Impedance; 6.8 Ohm
• AES Power Handling (1): 60 W
• Maximum Power Handling (2): 120 W
• Minimum Crossover Frequency (3): 1.3 kHz
• Sensitivity (1W/1m) (4): 107 dB
• Frequency Range: 1÷20 kHz
• Voice Coil Diameter: 44 mm (1.73 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Dome
• Winding Depth: 2.3 mm (0.09 in)
• Magnetic Gap: 2.85 mm (0.11 in)
• Flux Density: 1.5 T
• Magnet: Ferrite Ring
• Re: 5.8 Ohm
• Phase Plug Design: Annular
• Exit Angle (5): 13° Conical
• NET Air Volume filled by HF Driver: 0.33 dm^3 (0.011 ft^3)

NOMINAL SPECIFICATIONS

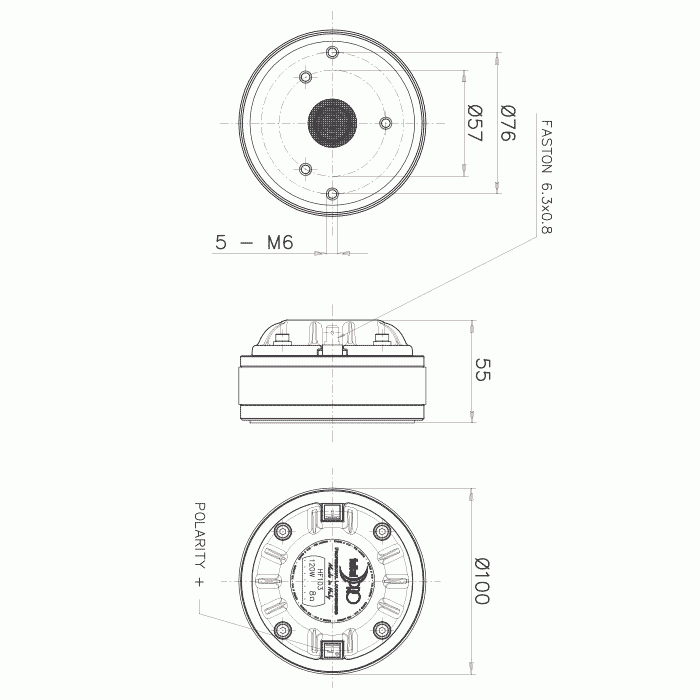

• Throat Diameter: 25.4 mm (1 in)
• Overall Diameter: 100 mm (3.94 in)
• 180° Mounting Holes Diameter (2xM6)
• Depth: 55 mm (2.17 in)
• Net Weight: 1.3 Kg (2.9 lb)
• Shipping Box (Single carton box): 147 x 130 x 82 mm | (5.8 x 5.1 x 3.2 in)
• Shipping Weight: 1.6 Kg (3.5 lb)

PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 00444173

FaitalPro HF103 HF Drivers 8 ohms
