• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.6 Ohm
• AES Power Handling (1): 35 W
• Maximum Power Handling (2): 70 W
• Minimum Crossover Frequency (3): 2.6 kHz
• Sensitivity (1W/1m) (4): 107 dB
• Frequency Range: 2.6÷20 kHz
• Dispersion Angle: 40°
• Voice Coil Diameter: 37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Diaphragm Material: Ketone Polymer
• Diaphragm Shape: Annular
• Winding Depth: 2.1 mm (0.08 in)
• Magnetic Gap Depth: 2.6 mm (0.10 in)
• Flux Density: 1.5 T
• Magnet: Ferrite Ring
• Re: 5.5 Ohm
• Phase Plug Design: Annular
• Exit Angle: N/A
• NET Air Volume filled by HF Driver: 0.3 dm^3 (0.011 ft^3)

NOMINAL SPECIFICATIONS

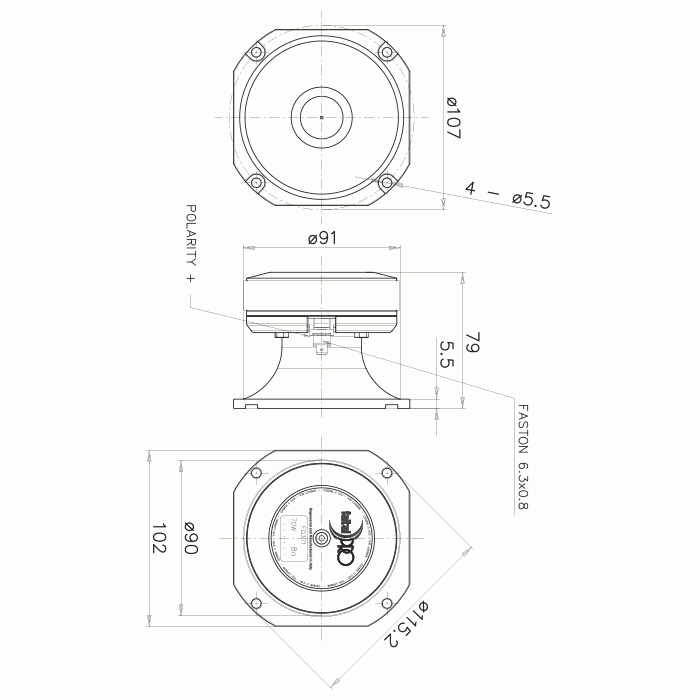

• Throat Diameter: N/A
• Overall Diameter: 115.2/102 mm (4.54/4.0 in)
• Bolt Circle Diameter: 107 mm (4.21 in)
• Baffle Cutout Diameter: 91 mm (3.58 in)
• Depth: 79 mm (3.11 in)
• Flange and gasket Thickness: 5.5 mm (0.22 in)
• Net Weight: 1.3 Kg (2.8 lb)
• Shipping Box (Single carton box): 150 x 123 x 102 mm (5.9 x 4.8 x 4.0 in)
• Shipping Weight: 1.3 Kg (2.9 lb)

PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 00374110

FaitalPro FD371
HF Drivers 8 ohms
