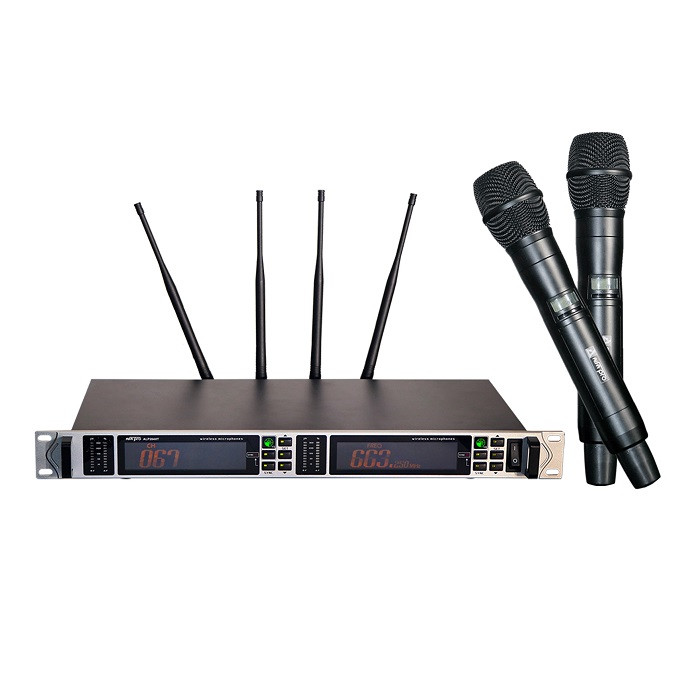

Receiver Technical parameters
• Chassis Specifications: Standard 1U case
• Group of channels: Dual Channel

• Carrier frequency:
615 - 665 MHz
740 - 780 MHz
780 - 820 MHz
(other bands can be customized)

• Modulation: FM
• Oscillation mode: Phase locked frequency synthesizer
• Sensitivity: Offset deg is equal to 25KHz, 6dB V, S/N>60dB
• Offset: +/- 45kHz
• Band width: 24 MHz
• S/N ratio: >100 dB
• T.H.D: <0.5% @ 1 KHz
• Frequency response: 50Hz~18kHz = 3dB

• Output voltage:
-20dBV/100 ohm balanced
-4dBV/5K ohm Unbalanced

• output Socket: XLR balanced and Unbalanced socket Ø6.3
• Temperature range: -10 ºC to 55 ºC
• AC power supply: 0.5-1A, 12-15V DC
• Weight: about 1850g
• Size: 410 x 45 x 200mm
