• 96 Fixtures, 40 Channels
• R20 Fixture library format
• Shape Generator build-in
• Total 1024 Channels, 6 Chase pages Inside dozens of effect shapes
• Running 10 scenes
• 5 effect shapes at the same time
• With fader control the dimmer and brightness
• DMX512 / 1990 standard, maximum 1024 DMX control channel, optically isolated signal output.
• Maximum control 96 or 96 computer lights dimming, use pearl light library.
• Built-in graphics trajectory generator, there are 135 built-in graphics, user-friendly graphical fixtures trajectory control, such as a circle, spiral, rainbow, • chase and other effects. Graphics parameters (such as: amplitude, speed, interval, waves, direction) can be set independently.
• 60 repeat scenes, scenes for storing multi-step and single-step scene. Multi-step scenario can store up to 600 steps.
• Backlit LCD display, display in English
• Off data retention.
• U-disk backup and upgrade.
• Professional gooseneck lights for indoor and outdoor performances. (Optional)
• Power: AC 100- 240V / 50-60Hz.
• Size: 485 x 420 x 105.
• DMX512 channels: 1024
• Mating number of fixtures: 96
• Fixtures re-connected with the address code: Support
• Lamps horizontal and vertical exchange: Support
• Lamps channel inverting output: Support
• Lamps channel sliding mode switch: Support
• Each scanner maximum available control channels: Channel 40 main channel +40 trim
• Fixture Library: R20 pearl light library support
• The number of scenes that can be saved: 60
• The number of scenes that can run simultaneously: 10
• The total number of steps in a multi-step scenario: 600
• Scene time control: fade in, fade out, LTP sliding
• Graphics can be stored for each scene: 5
• Fader scenes and dimming: Support
• Interlock Scene: Support
• Point Control scenarios: support
• Graphics Generator: can generate Dimmer, P / T, RGB, CMY, Color, Gobo, Iris, Focus Graphics
• Graphics can be run at the same time the number: 10
• Master Fader: Global, repeat, lighting
• Now Black: Support
• Dial to adjust the channel values: support
• Fader adjust the channel values: support
• Fader Dimmer: Support
• U disk read: Support FAT32 format
• Voltage: 100 to 240 V
• Frequency: 50/60 Hz
• Mating number of Fixtures: 96
• The Number of Scenes That Can be Saved: 60
• The Number of Scenes That Can Run Simultaneously: 10
• The Total Number of Steps in a Multi Step Scenario: 600
• Scene Time Control: Fade In, Fade Out
• LTP Sliding Graphics Can be Stored for Each Scene: 5 Fader Scenes/Dimming
• Size: 485 x 420 x 105 cm

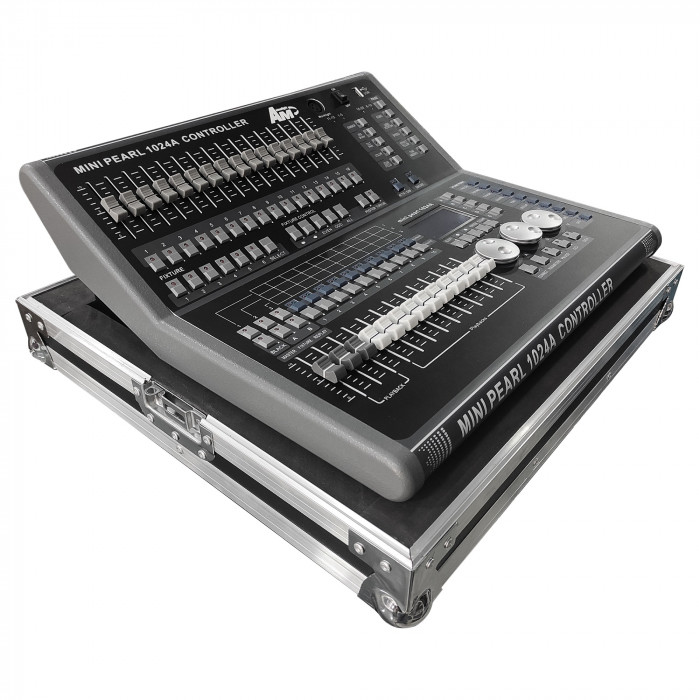

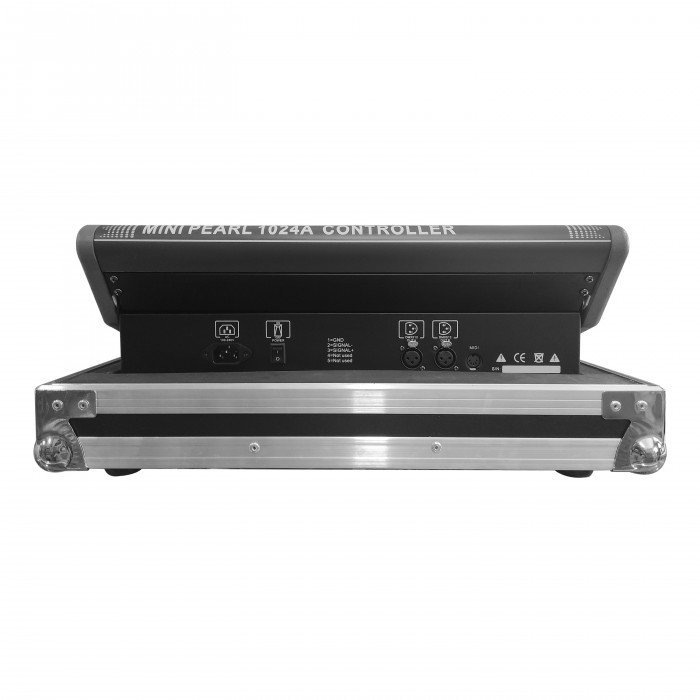

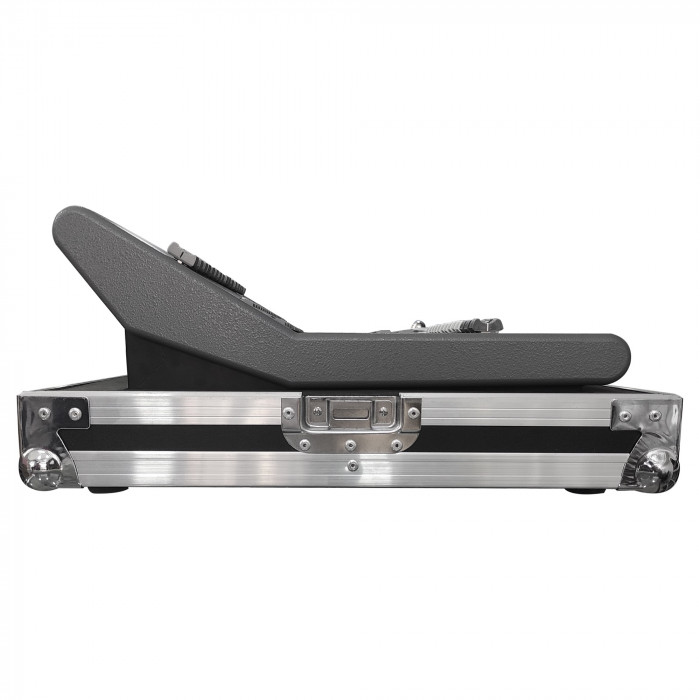

DMX Lighting Console
AM Showlight AM-1024A
