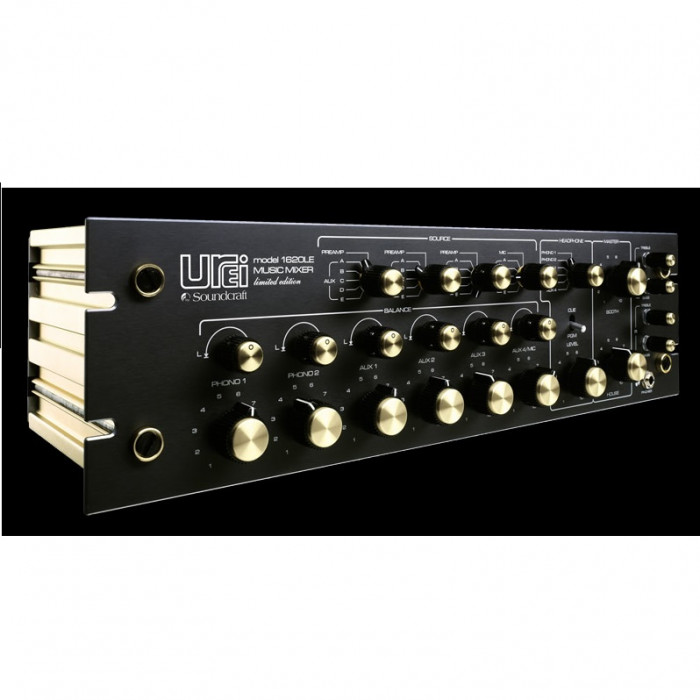

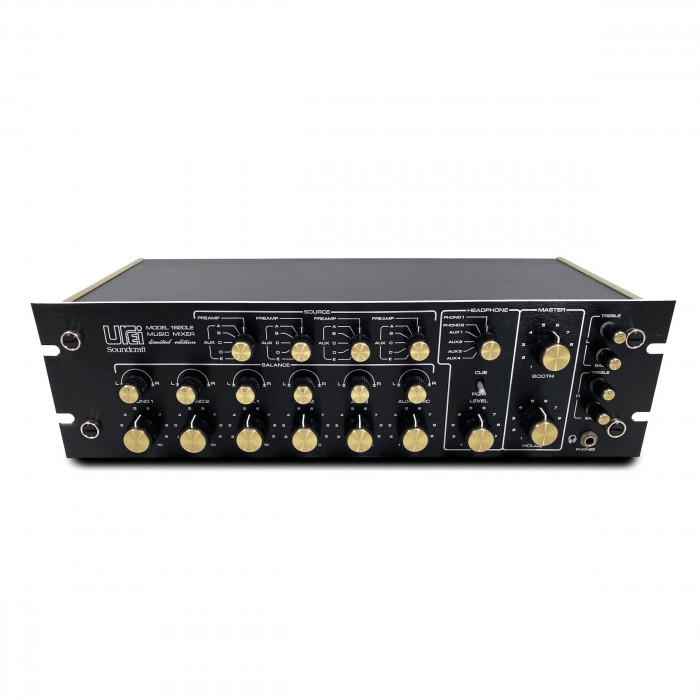

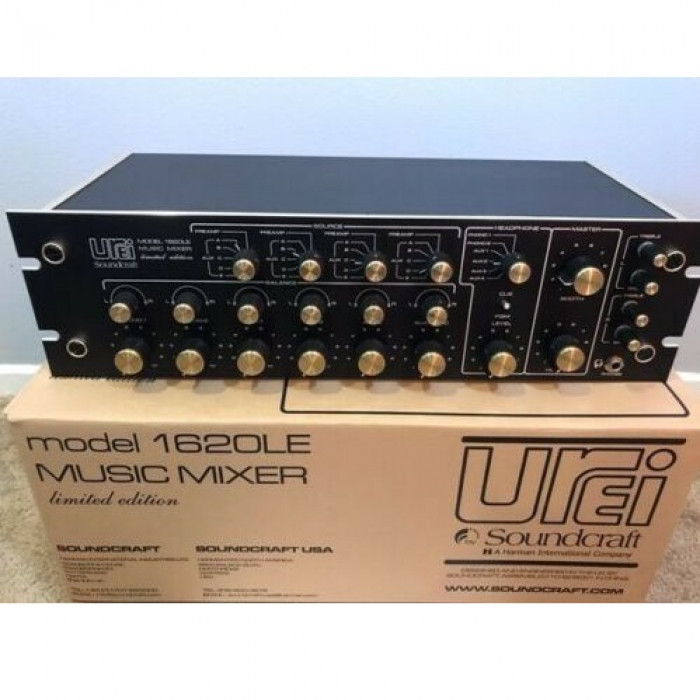

Soundcraft UREI 1620LE |
DJ Mixer |
THE AUTHENTIC SOUND OF DANCE MUSIC | 1620: THE LEGEND IS REBORN
With six channels and flexible routing, the 1620LE has more than enough connectivity to handle sophisticated system configurations or installations. And when the dancefloor is packed, you’ll love the instant, spontaneous and intuitive feel of the 1620LE’s controls. One look at the feature set will tell you that the 1620LE is all about the music. Classic rotary level & balance controls, great source flexibility, separate House and Booth outputs, a beautifully elegant headphone section and true balanced connections put performance where it really counts. And we’ve ensured that today’s 1620LE continues Urei’s hard-earned tradition for reliability. Ruggedly engineered and manufactured to exacting tolerances, this mixer will keep you working, night after night, in the most demanding of environments. Welcome to the new Urei 1620LE. The legend is reborn
KEY FEATURES
• Six stereo channels with legendary Urei sound quality
• Individual L/R balance control on every channel
• Authentic and responsive rotary faders on all channels
• Channels 1 and 2 feature RCA phono inputs, allowing
the easy integration of twin decks
• Auxes 1, 2 and 3 feature line level preamps, for direct
connection of external sources
• Optional preamp cards allow Auxes 1-4 to carry Mic,
Line or Phono level inputs
• Aux 4 carries a dedicated mic preamp, allowing instant
connection of an external microphone
• Five extra aux inputs (A-E) can each be routed to auxes
1 to 4, giving unrivalled user flexibility
• Master Booth and House outputs, each with a
dedicated level control
• Master mono House output
• Master bass and treble controls give +/-10dB of
sweetening on all main outputs
• Sophisticated headphone section can be fed from any
of the six channels, or the main program output
• Front panel illuminated headphone socket with
dedicated level control
DJ Mixer Dual stereo recording outputs
• Master send-and-return FX loop
• Internal engineer set-up controls
• Durable construction for total reliability
• 3U 19" rack mounting format
CHANNEL INPUTS:
• Phono 1 & 2: Stereo RCA phono inputs for direct turntable connection.
• Auxes 1 - 3: Stereo RCA inputs for connection of line level sources
• such as CD, MP-3, tape etc. Optional preamp cards for Phono/Mic level connections.
• Aux 4: Balanced XLR input for connection of mic level source. Optional preamp
• cards for Phono/Line level connections.
AUXES:
• Auxes A - E : Stereo RCA inputs for connection of external line level sources.
• These can be routed to any of the Aux inputs 1-4 (channels 3-6), allowing an extra level of input flexibility.
BOOTH OUTPUT:
• Stereo output, supplied on both isolated balanced XLR and unbalanced RCA
• connectors. Controlled by the master Booth level setting.
HOUSE OUTPUT:
• Stereo output, supplied on both balanced XLR and unbalanced RCA phono connectors. Controlled by the master House level setting.
• For lighting controllers, a mono summed House output is also provided on unbalanced jack, and is independent of the Master house level control.
TAPE OUTS:
• For recording purposes, two stereo tape outs are supplied on unbalanced RCA connectors.
FX LOOP:
• A stereo FX loop is provided on unbalanced RCA connectors, in a ‘Send & Return’ format. This allows an external FX device to be patched into the main House & Booth signal paths.
HEADPHONE OUTPUT:
• Accessed via the front panel, the illuminated headphone output is supplied on a
• 1/4" stereo jack.
• POWER SUPPLY:
• The high quality internal power supply is an integral part of the 1620LE’s sound.
• An IEC power inlet is provided, along with a mains voltage selector switch -
• meaning that wherever you travel, your 1620LE can go with you.
Soundcraft UREI 1620LE
DJ Mixer
