Products detail

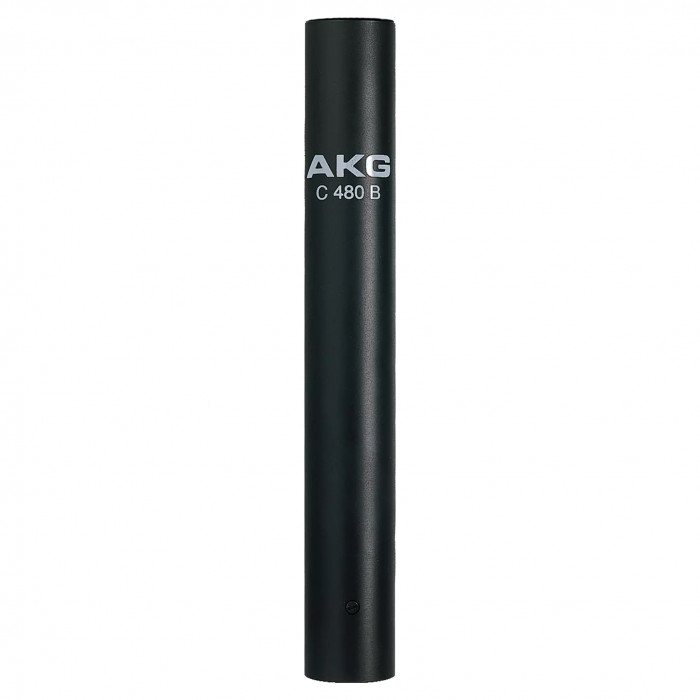

Condenser Microphone - C480 B CB-ULS/61

Condenser Microphone

Condenser Microphone - C480 B CB-ULS/61

Model: C480 B CB-ULS/61
Manufacturer: AKG

AKG C480 B ULS

AKG C480 B ULS

Cardioid Condenser Microphone

The C480 B offers excellent audio quality and maximum flexibility. Its electronic circuitry coupled with a transformerless output stage assures completely linear transfer characteristics across the entire frequency range, while achieving self-noise figures close to the theoretical minimum.

The C480 B Combo is a combination of C480 B pre-amp and the CK61 ULS capsule. It offers excellent audio quality and maximum flexibility. The electronic circuitry of the C480 B comes with a transformerless output stage and assures completely linear transfer characteristics across the entire frequency range, while achieving self-noise figures close to the theoretical minimum. The CK61 capsule is characterized by a ruler-flat frequency response and an unmatchable consistent cardioid polar pattern. It is the ideal choice for critical recording and live-sound applications where consistent suppression of off-axis sound is an important requirement. The CK61 ULS is widely used in broadcast and recording studios as well as on stages worldwide.

General Specifications:
• Polar Pattern: Cardioid
• Audio frequency bandwidth: 20 - 20000 Hz
• Equivalent noise level: 11 dB-A
• Sensitivity: 20 mV/Pa
• Signal to Noise: 83 dB-A
• Preattenuation Pad: 6 - 10 dB
• Bass cut filter: 100 Hz
• Electrical impedance: 150 Ohms
• Recommended load impedance: 2000 Ohms

Dimensions
• Height 171 mm
• Diameter: 21 mm

Design
• Finish: matte black

Audio Output
• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Powering Interface
• Voltage: 48 to 48 V
• Current: 2 mA

Applications
• Studio
• Broadcast

Box Contains:
• 1 x C480 B Pre-Amp
• 1 x CK61 ULS Capsule
• 1 x W32 Windscreen

AKG C480 B ULS
Cardioid Condenser Microphone
