Combo XLR Jack |
DigiPro DGJ6FI-H |

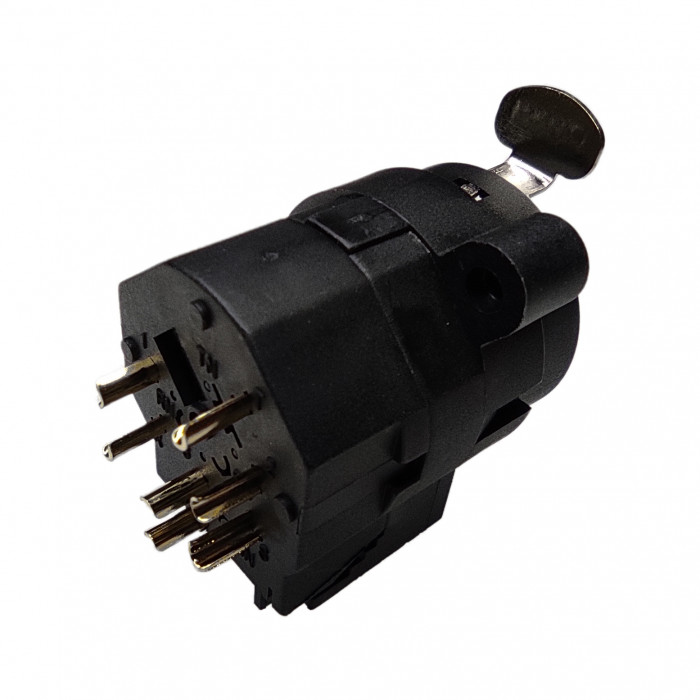

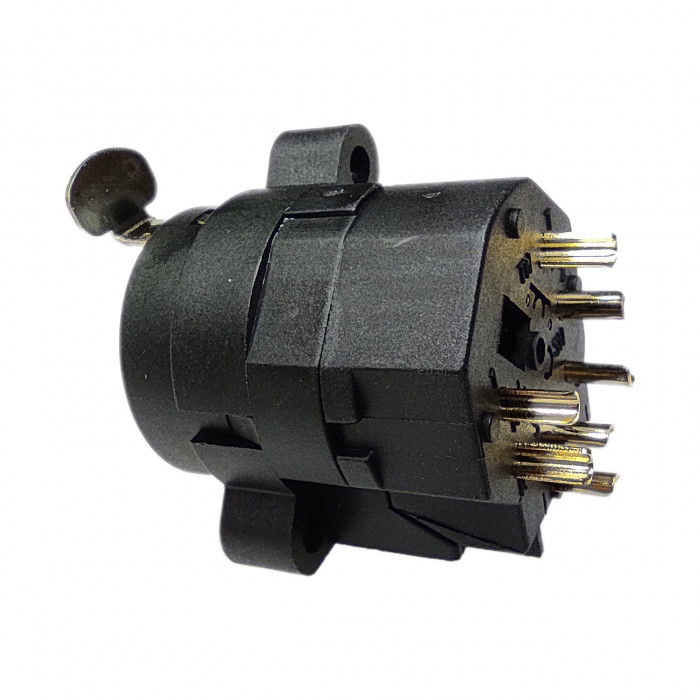

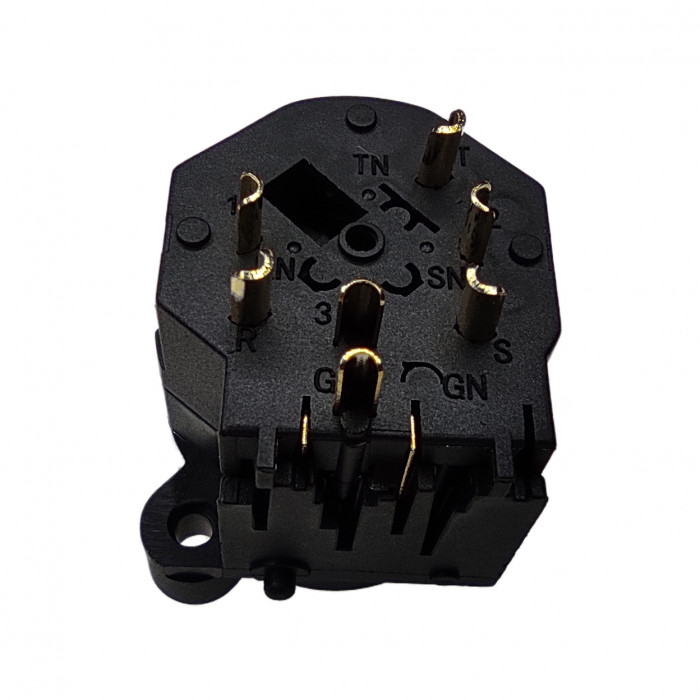

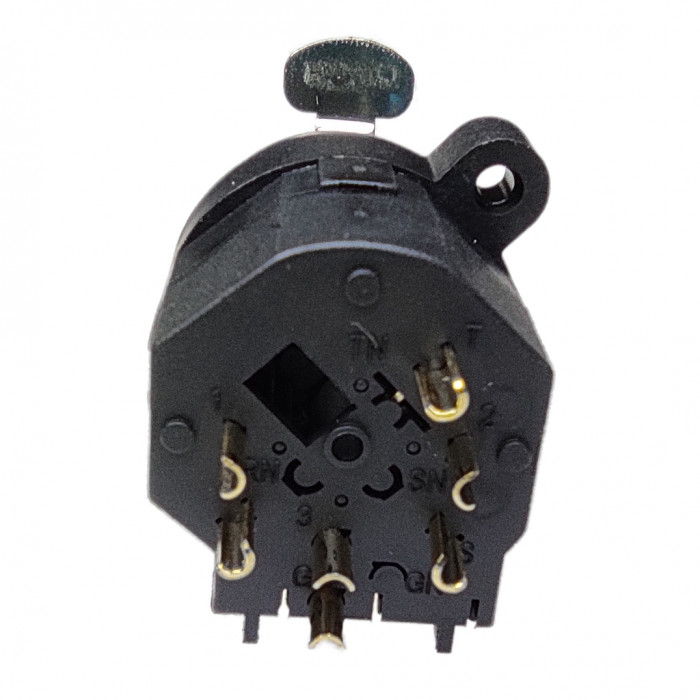

3 pole XLR female receptacle with ¼ inch stereo jack without switching contact, horizontal PCB mount
• XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and ¼ inch jack.
• Combined XLR receptacle and ¼ inch phone jack
• Balanced or line inputs in one XLR shell
• Saves rack space by combining 2 connectors in one housing
• Very low conductor capacitance, therefore suitable for digital audio
Product
• Title: DGJ6FI-H
• Connection Type: Combo
• Gender: female
Electrical
• Contact resistance: < 10 m ohms (XLR)
• Contact resistance: < 20 m ohms (jack)
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 G ohms (initial)
• Rated current per contact: 7,5 A (XLR)
• Rated current per contact: 7,5 A (Jack)
• Rated voltage: < 50 V
Mechanical
• Insertion force: 25 N
• Withdrawal force: 25 N
• Lifetime: > 1000 mating cycles
• Panel thickness: max. 7 mm 0.27 inch
• Mounting direction: Rear mounting
Material
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Bronze (CuSn6)
• Insert: PA66
• Locking element: Steel Ck67
Environmental
• Flammability: UL 94 V-0
• Temperature range: -30 °C to +80 °C
