Boundary Layer Microphone - MB4

Boundary Layer Microphone

Boundary Layer Microphone - MB4

Model: MB4
Brand: Crown

Miniature boundary layer microphone

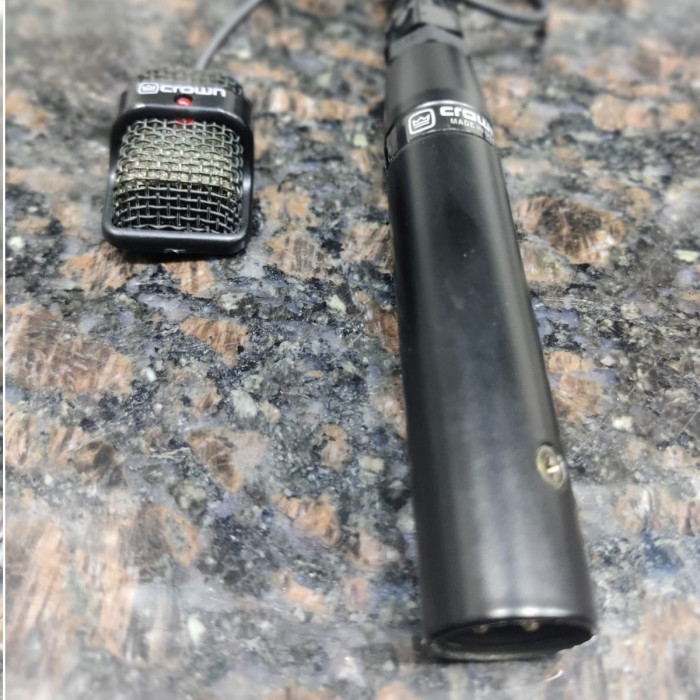

Crown MB4

Miniature boundary layer microphone

The MB4 is a miniature boundary microphone for table-top installation. Thanks to its supercardioid pickup pattern, the MB4 greatly reduces ambient noise and pickup of room reverberation. The result is a clearer, more intelligible sound for applications such as teleconferencing, distance learning, boardrooms and courtrooms.

The MB4 has a cable leading to an XLR-type output connector with built-in mic electronics. It is powered by 12 to 48V phantom power and is low-impedance balanced.

General Specifications:
• Audio frequency bandwidth: 50 - 15000 Hz
• Equivalent noise level: 22 dB-A
• Sensitivity: 22 mV/Pa
• Signal to Noise: 72 dB-A
• Polar Pattern: Supercardioid

Dimensions:
• Height: 38 mm
• Diameter: 15 mm
• Net Weight: 97 g

Design:
• Finish - satin black

Audio Output:
• Type - Balanced XLR
• Gender - Male
• Contacts - 3-pin

Powering Interface
• Voltage - 12 to 48 V

Application:
• Conferencing - Yes
Presentation - Yes

Device:
• Boundary Layer Microphone - Yes

Crown MB4
Miniature boundary layer microphone
