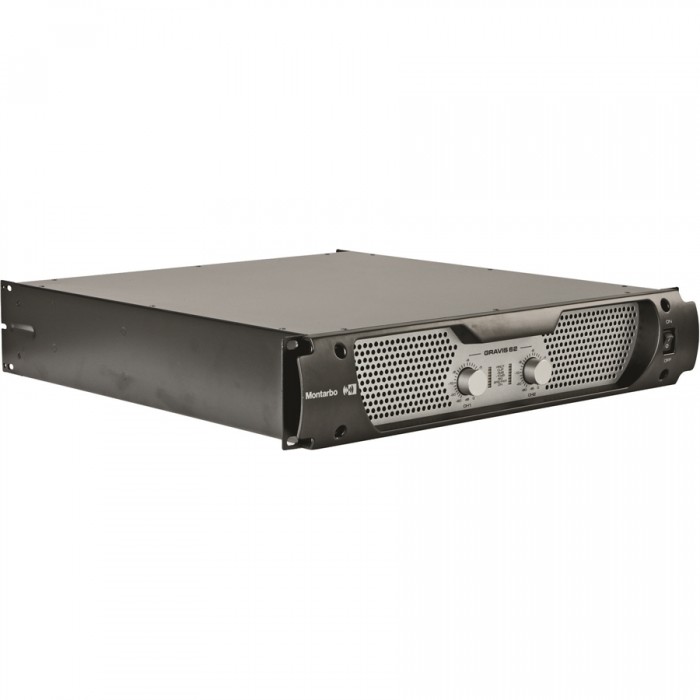

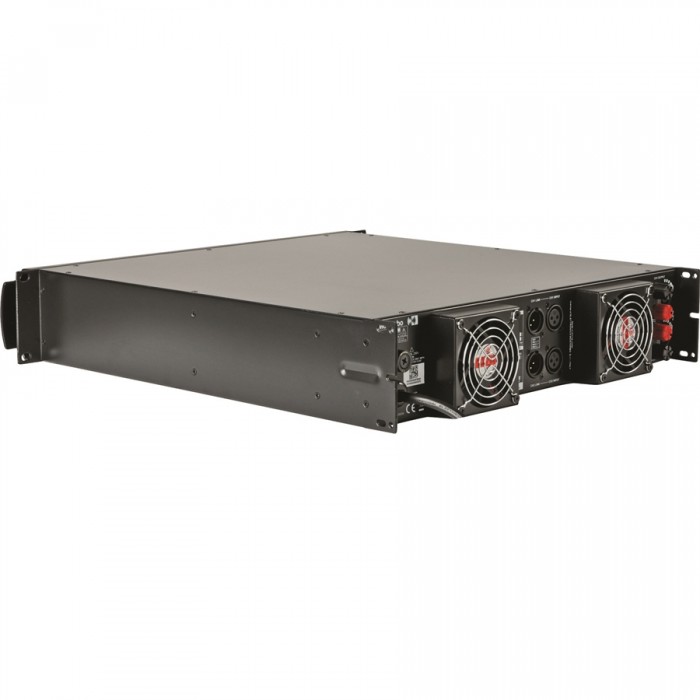

Amplifier - GRAVIS 62

Model:	MONTARBO - GRAVIS 62
Manufacturer:	Montarbo \|Made in Italy

features
specification

6200W 2U. SMPS Power Amplifier.
STEREO MODE: 2 x 1200W @ 8Ω. 2 x 2000W @ 4Ω. 2 x 3000W @ 2Ω.
BRIDGE MODE: 4100W @ 8Ω. 6200W @ 4Ω.
PROTECTIONS: Soft start DC, short circuit, over load, clip limit, over heat, progressive volume, VHF.
Weight 13 kg.
Dimension W 483 x H 89 x D 505 mm.
Assembled in China. Engineered by Montarbo.

TECHNICAL SPECIFICATIONS

ACOUSTIC DATA
Power RMS @ 8 ohms	2 x 1200 W
Power RMS @ 4 ohms	2 x 2000 W
Power RMS @ 2 ohms	2 x 3000 W
Power Bridged RMS @ 8 ohms	4100 W
Power Bridged RMS @ 4 ohms	6500 W
Frequency Response	20 Hz – 20 KHz @ 8O (+/-0.5dB)
THD+N (THD%)	<0.1%
Damping factor (@100Hz)	>200
SN Rate	=90 dB
Limiter	clip/limit, infra frequency protection, over-power limit, Therminal Limiter
Cooling	Airflow from front panel to rear panel

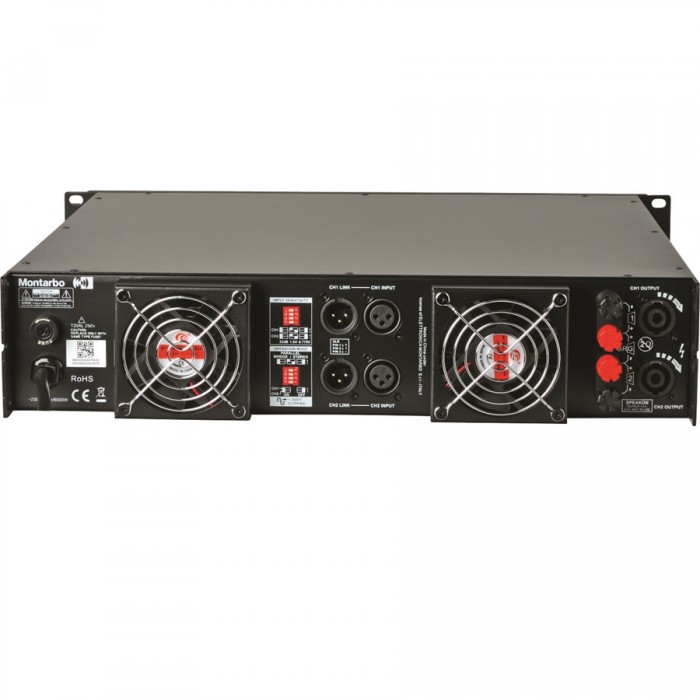

CONNECTION
Signal Input	2 x XLR
Signal Output	2 x XLR
Output Connector	2 x SpeakOn
INPUT SECTION
Voltage Gain [dBu]	38 dB
Input Sensitivity [V]	1.0V / 0.775V
Input Impedance	Bal 20K / Unbal 10K
HARDWARE
Housing	2U standard rack 19"
Installation Standard	Flight Case
Width	483 mm (19 in)
Height	89 mm (3,5 in)
Depth	464 mm (13,9 in)
Weight	16 Kg (26,45 lb)
