Active Subwoofer - MOL1818A

Active Subwoofers

Active Subwoofer - MOL1818A

Model: MOL1818A
Manufacturer: Montarbo |Made in Italy

Discontinued

Band-pass horn-loaded bi-amplified active subwoofer.

Designed for live music performed in medium to large venues where the main requirements are extended bass response and maximum sound pressure. The company's pioneering approach to acoustical design combines the theory of wave-guides with that of band-pass systems and the mathematics of organ pipes with that of low-turbulence exponential reflex ports.

All of this is carved in the wood, without compromises. This relationship between art and science is completed thanks to an innovative 18" woofer, which embodies a new technology that makes it possible to drive a new-geometry voice coil in a linear manner over a ±30 mm excursion. Moreover, multiple heat dissipation systems help to control and minimize the power compression effects up to the rated power level. The result is the higher Maximum Output Level rating for a subwoofer of this size, weight and power.

Power and control, without compromises, up to the last watt. The unusually low distortion and the unexpected long throw of model MOL1818A when compared with subwoofers having the same size and power rating makes it possible to achieve very high levels of performance from a smaller number of units. Particular attention has been focused on efficiency and tonal neutrality.

MOL1818A SubOne, thanks to its performances and ability to effortlessly reproduce extended low frequencies, may be used as the low frequency speaker in the PalcoPLUS line-array system in place of the RAB1815 cardiod subwoofer.

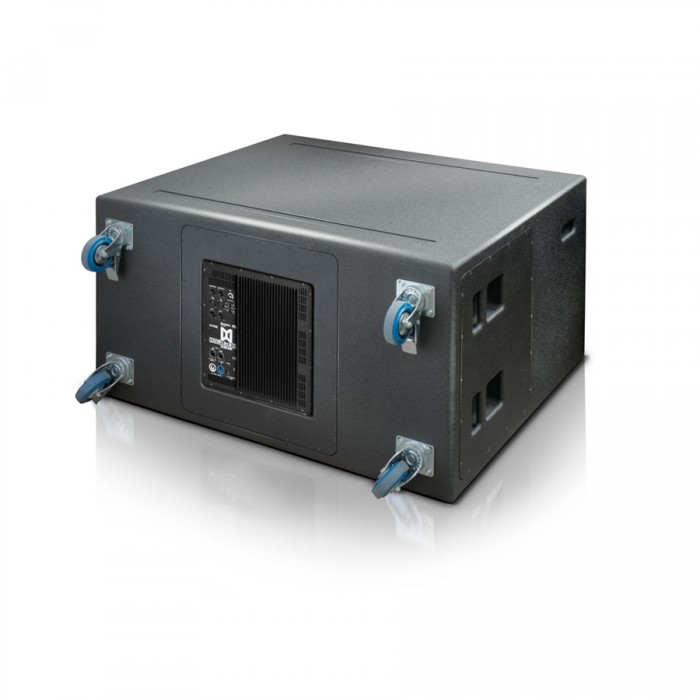

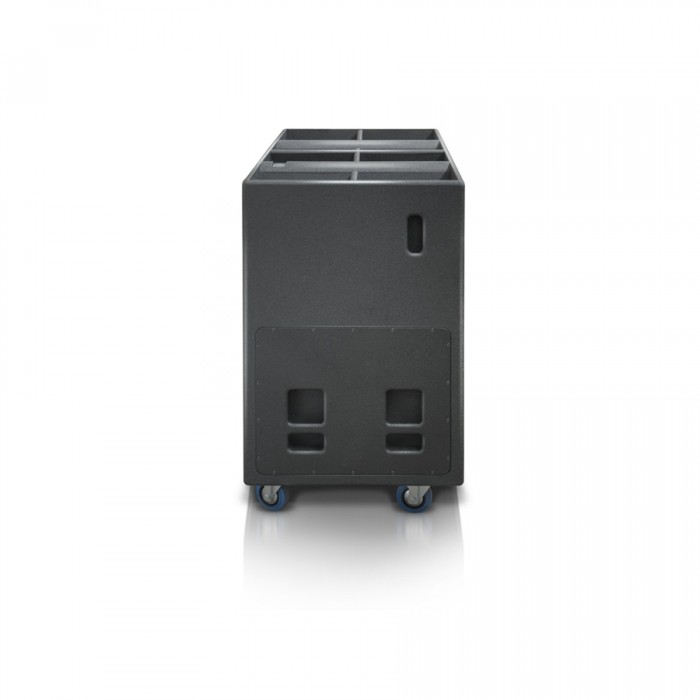

The extremely sturdy cabinet is built with 18 mm birch multiply covered with an anti-scratch surface finish; it is fitted with internal driver-protection grills, castors with brakes and carved out handle cavities on both sides of the cabinet.

Active subwoofer, 2x18" woofer band pass horn (4.5" voice coil, ventilated, shielded neodymium magnet). Two class-D amps (1700 W+1700 W). SMPS, controlled by the new-generation Montarbo® DSP loudspeaker processor.
5 presets, one of which is customizable by users.
Weight 110 kg.
Dimensions WxHxD 1160x606x900 mm

TECHNICAL SPECIFICATIONS
ACOUSTIC DATA
Frequency Response [-10dB] 35 Hz – 120 Hz
Frequency Response [-3dB] 42 Hz – 90 Hz
SPL 1W @ 1mt 111 dB
Max SPL 144 dB
Dispersion (HxV) omni
Crossover Frequency LPF 85 Hz – 24 dB/Oct
LF 2 x 18”
LF Voice Coil 4,5”
LF Type BandPass – Horn loaded
AMPLIFIER
Amp Class 2 x D 1700 watt
Peak Power 3400 watt
RMS Power 2400 watt
Self-rotating display NO
PROCESSOR
Controller Yes
AD/DA Converter Yes
System Presets Yes
Limiter Yes
Dual Active Peak, RMS, Thermal Yes
INPUT SECTION
Signal input Dual XLR stereo input
Signal Out Dual Line and X-Over
USB Connector/RJ45 No/Yes
MECHANIC
Flyable No
Handles Yes
Pole mount No
Width 1160 mm
Height 605 mm
Depth 1030 mm
Weight 110 Kg

APPLICATIONS

Suitable for both open and closed venues, MOL1818A is the right choice for rental companies, big touring systems, fixed and semi-permanent installations.

  • Sports stadiums
  • Arenas
  • Concert Halls
  • Medium to large size theaters
  • Medium to large size clubs
  • Large events
