The Class-D amplifier features a high-efficiency channel ensuring a 1600 W RMS power that allows the speaker a 135 dB SPL with a frequency response that extends up to 35 Hz. An advanced 24 bit 96 kHz DSP ensures consistency, linearity and reliability thanks to the innovative proprietary M-Modelling, technology, able to model the phase and frequency response through sophisticated digital algorithms, for a superb reproduction of sound details offering an unprecedented dynamic.
8 presets, 4 of which are user-programmable, make the system suitable for any use, thanks also to the Dante analog and digital inputs for a versatile and complete plug & play connection. Through two ethercon connectors shared with the Dante port, several speakers can be connected to the network to access multiple device parameters. The architecture is based on the o M-Connect proprietary software that, through a simple advanced interface allows the control and the tuning of the installed system. A point-to-point Wi-Fi connection with access via a dedicated app facilitates the stand-alone control of some basic speaker parameters such as volume and mute. A proprietary control system allows the authentication of the product.
The EARTH PRO Series subwoofers allow the range of WIND PRO models to be extended up to 28 Hz. A complete range of integrated optional rigging Montarbo® accessories allows the system to be installed in any situation.
FEATURES
- 1-channel amplifier 1600 W RMS
- 135 dB SPL
- Acoustic design 6th order Band-Pass
- 15” ferrite woofer with 4” voice coil
- 24 Bit 96 kHz DSP with M-Modelling Technology
- Integrated DANTE
- M-Modelling Technology
- Compatible Software’s: M-Connect and M-Simulation
- Wi-Fi Connection
- M-ID authentication system via app
- Integrated Rigging
Speaker Type |
Active Subwoofer |
Application |
Touring |
Serie |
EARTHPRO |
People / Mq |
500Mq/2000p |
ACOUSTIC DATA |
|
Frequency Response [-3dB] |
35Hz – 200Hz |
Cont.1 SPL |
135 dB |
Dispersion |
Omni |
LF |
15” long-excursion Ferrite |
LF Voice Coil |
4” |
LF Type |
6th order Band-Bass |
AMPLIFIER |
|
Amp Class |
Class D 1600W |
Power |
100-240V 50-60 Hz PFC |
DSP |
|
Controller |
Yes M-Control |
AD/DA Converter |
24 Bit, 96 kHz |
System Presets |
4 Factory, 4 User |
Limiter |
Yes |
Dual Active Peak, RMS, Thermal |
Yes |

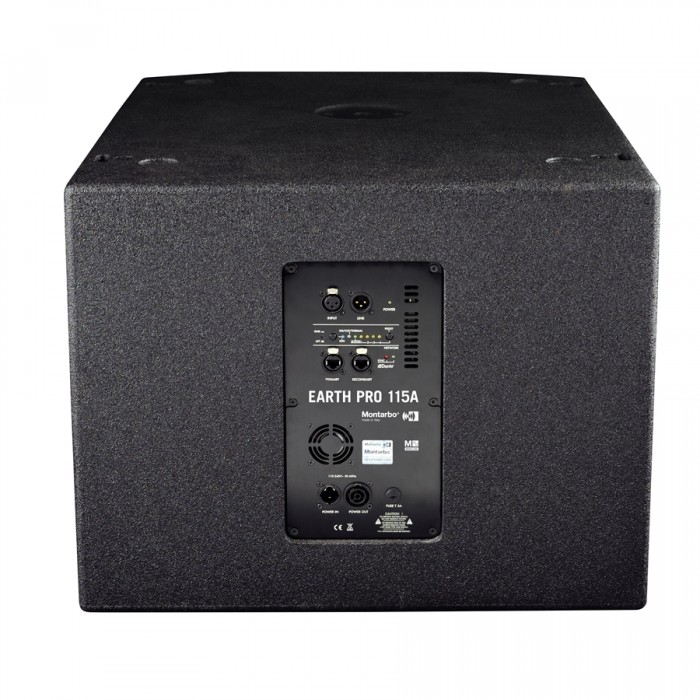

INPUT SECTION |
|
Signal input |
2 x XLR Analog + Dante |
Signal Out |
1 x XLR |
Ethercon Connector |
Yes |
MECHANIC |
|
Housing |
Plywood |
Flyable |
Yes |

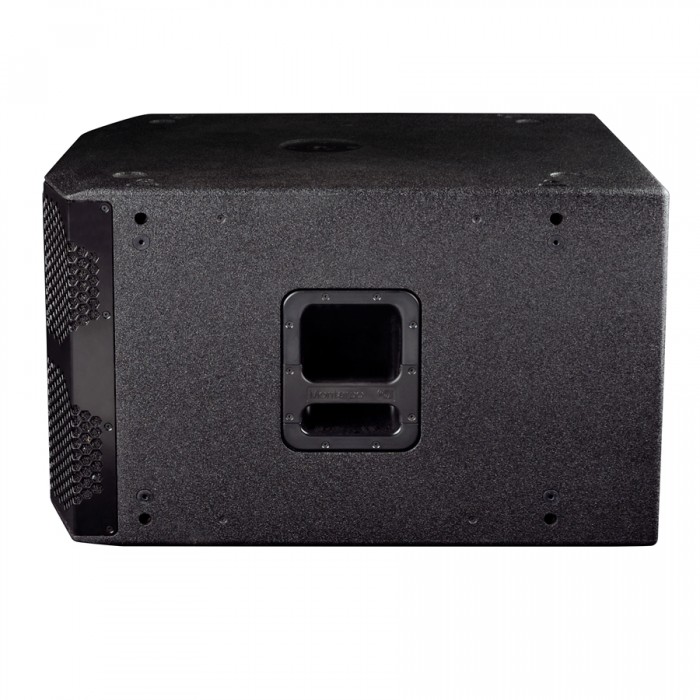

Handles |
Yes |
Pole mount |
Yes |
Width |
580 mm (22,8 In.) |
Height |
476 mm (18,3 In.) |
Depth |
750 mm (29,50 In.) |
Weight |
40 Kg (88,2 lbs) |
