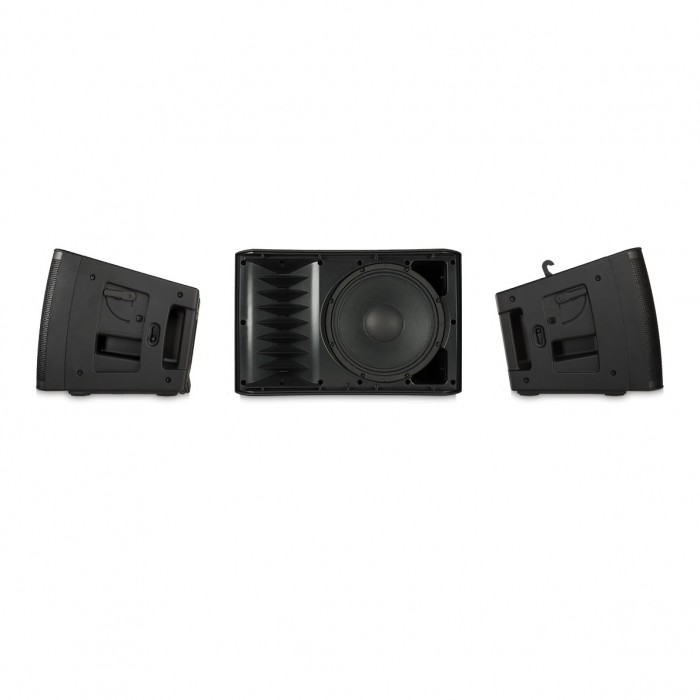

QSC KLA12 |
Powered Active Speaker 12-inch 2-way |
• 500 W + 500 W power module
• Rugged, ABS enclosure delivers light-weight durability
• SOLO™ Rigging System supports deployment without tools or external hardware
• Ar-Q™ Frequency Optimization quickly tunes the array with the click of a dial, adjusting for the appropriate number of boxes
• 10:1 design factor supports arrays of up to 480 lbs. (218 kg) 5 × KLA12 and 2 × KLA181
• 90° × 18° nominal coverage (requires only five boxes to configure a 90° x 90° array)
• High power, 12-inch low frequency driver provides extension down to 44Hz without subwoofers
• Extensive DSP further enhances and protects performance
• 1.75-inch diaphragm compression driver delivers clear and powerful high-frequency reproduction
• powerCON® Input and Thru connections
• Tilt-Direct™ pole mount assists directivity in single-unit applications
SPECIFICATIONS:
• Configuration: Multipurpose 2-way
Transducers:
• High Frequency: 1.75-inch diaphragm compression driver
• Low Frequency: 12-inch cone transducer
• Frequency Response (-6 dB): 49 Hz - 18 kHz
• Frequency Range (-10 dB): 44 Hz - 20 kHz
• Nominal Coverage: 90° H × 18° V
• Maximum SPL (1 meter): 131 dB peak
Amplifiers
Power Output
• HF: 500 W Class D continuous
• LF: 500 W Class D continuous
• Input Impedance: XLR: 40 k ohms balanced / 20 k ohms unbalanced
• Controls: Power, Attenuation, LF Setting (External Sub/Normal/DEEP™), Array Size (1-5), Front LED (Pwr/Limit/Off)
• Indicators: Power, Signal, Standby, Limit
Connectors
• Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out
• Cooling: On demand, 50 mm variable speed fan
• Amplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
• Transducer Protection: Thermal limiting, excursion limiting
• AC Power Input: Universal power supply 100–240 VAC, 50 to 60 Hz
AC Power Consumption
• (1/8 Power)
• 100 VAC, 2.3 A
• 120 VAC, 2.01 A
• 230 VAC, 1.13 A
Enclosure
• Material: Impact resistant ABS
• Finish: Black or white paint
• Grille: Rugged powder coated steel grille
Speaker Dimensions (H×W×D)
• 382 × 594 × 422 mm
• 15.0 × 23.4 × 16.6 in
Carton Dimensions (H×W×D)
• 690 × 430 × 534 mm
• 27.2 × 16.9 × 21 in
Weight
• Net Weight: 25 kg / 55 lb
• Shipping Weight: 30.8 kg / 67.9 lb
