• Stereo 3-way active speaker system composed of 2 passive satellites and an active bass cabinet.
• 3 class-D amplifiers (with switching-mode power supplies) that can supply a total of 2000 Watts EIAJ (1000 W for the bass cabinet, 500 + 500 W for the satellites).
• FULL 12: 130 dB max SPL half-space. FULL 6: 125 dB max SPL.

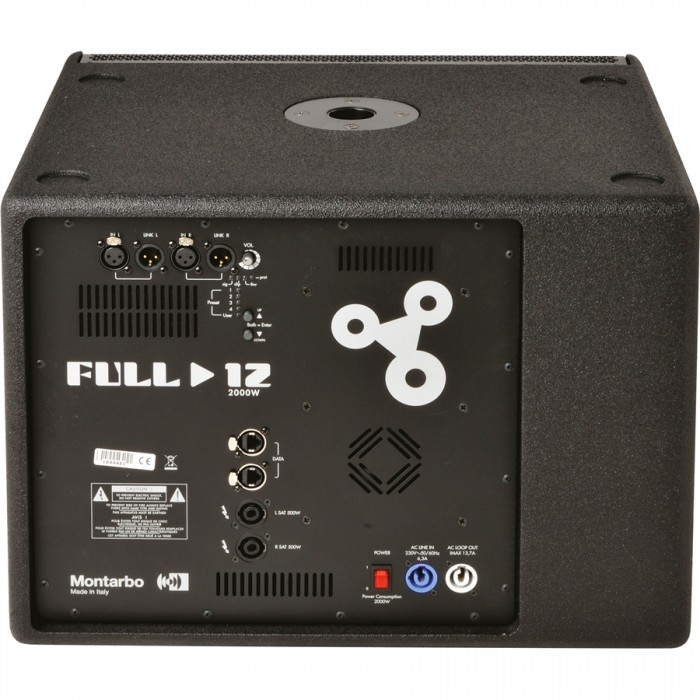

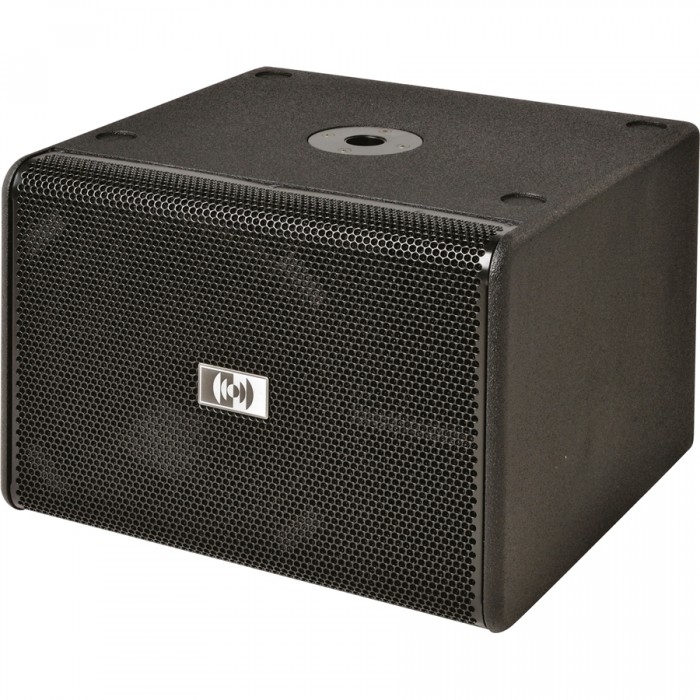

• FULL 12 bass cabinet: 12'' woofer (4'' voce coil) with a ventilated, shielded neodymium magnet.

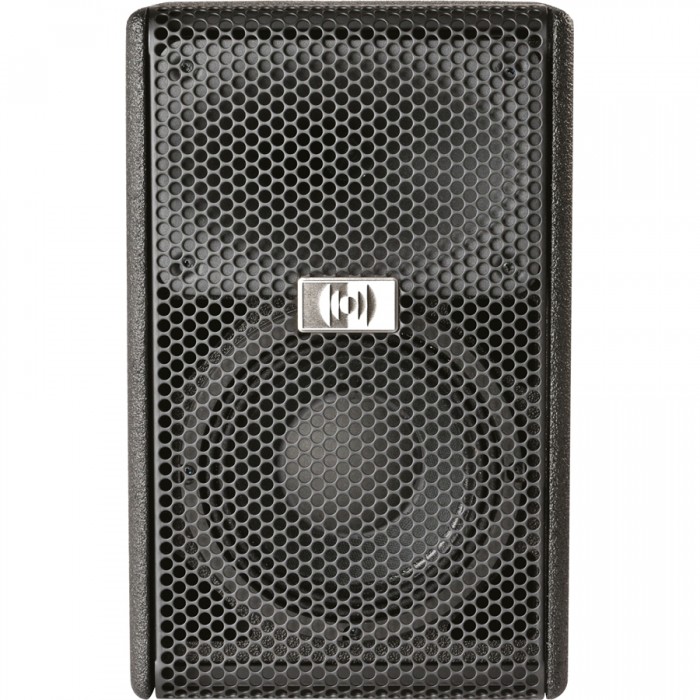

• FULL 6 satellite: 6'' woofer (2.5'' voice coil) with a ventilated, shielded neodymium magnet; HF driver, with 1'' throat and 1.5 '' voice coil, featuring a neodymium magnet and titanium diaphragm; wide dispersion (80° H x 60° V) wave-guide horn.
• Montarbo 56 bit DSP, 180 MHz, 24 bit converters.
• Dedicated standby function.
• 5 presets one of which may be customized and loaded into the DSP.
• Presets remote control and customization by means of the proprietary software program RAConLSTM and the optional LD2.4 USB interface.
• With a single LD2.4 USB interface it is possible to operate up to 10 speaker systems of the SPOT, WIDE and FULL series.
• Birch plywood cabinet, finished with anti-abrasion paint.
• Speaker stand adapter; transport handles.

ACOUSTIC DATA
• Frequency Response [-6dB]: 40 Hz – 20 kHz
• Max SPL FULL6: 125 dB
• Max SPL FULL12: 130 dB
• HF: 1"
• HF Voice Coil: 15"
• HF Type: Drive with cd horn
• Dispersion (HxV): 80° x 70°
• Crossover Frequency: 1800 Hz
• MF: 6”
• MF Voice Coil: 2,5"
• MF Type: Reflex
• Crossover Frequency: 2500 Hz
• LF: 12"
• LF Voice Coil: 4"
• LF Type: Reflex

AMPLIFIER
• Amp Class: 3 x class D ( 1x1000 W LF / 2x500 MHF)
• Peak Power: 2000 watt
• RMS Power: 1400 watt

PROCESSOR
• Controller: Yes
• AD/DA Converter: Yes
• System Presets: Yes
• Limiter: Yes
• Dual Active Peak, RMS, Thermal: Yes

INPUT SECTION
• Signal input: 2 x XLR
• Signal Out: 2 x XLR
• Power amp out: 2 x SpeakON 4 poli
• RJ45: Yes
• USB Connector: No

HARDWARE
• Housing FULL6: polywood
• Housing FULL12: polywood
• Flyable: No
• Handles: Yes
• Pole mount: Yes

FULL6
• Width: 210 mm (8,26 in)
• Height: 333 mm (13,11 in)
• Depth: 208 mm (8,18 in)
• Weight: 7,4 Kg (16,31 lb)

FULL12
• Width: 512 mm (20,15 in)
• Height: 376 mm (14,80 in)
• Depth: 476 mm (18,74 in)
• Weight: 24,5 Kg (54 lb)

• The sound pressure level and acoustic power that FULL 612 system is capable of generating are truly exceptional, making it possible to cover very large areas.
• Reproduction of recorded music in clubs and other entertainment venues.
• Live performances of acoustic and semi-acoustic music.
• Stage monitoring applications.
• Recording studios, control rooms.

Montarbo Full 612
Stereo 3-way active speaker system
