Stereo Jack Connector
| Model: | DTP3C |
| Manufacturer: | DigiPro |
DigiPro DTP3C

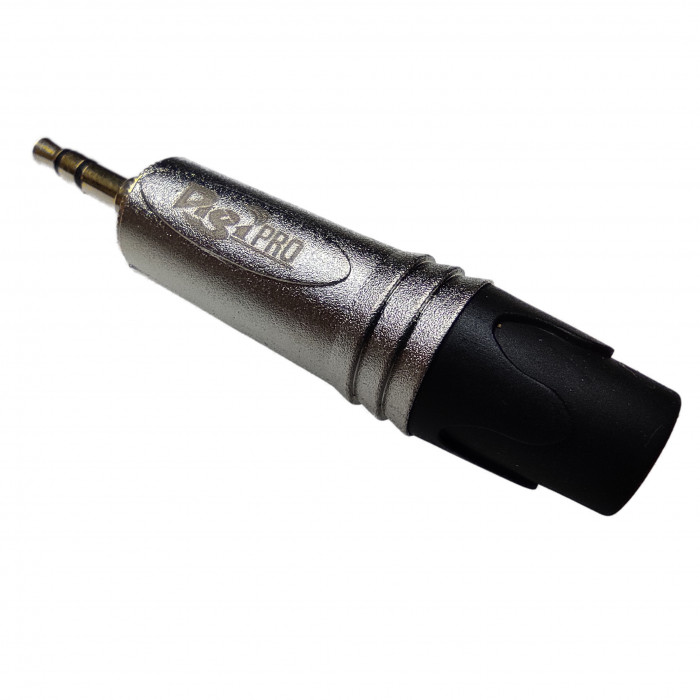

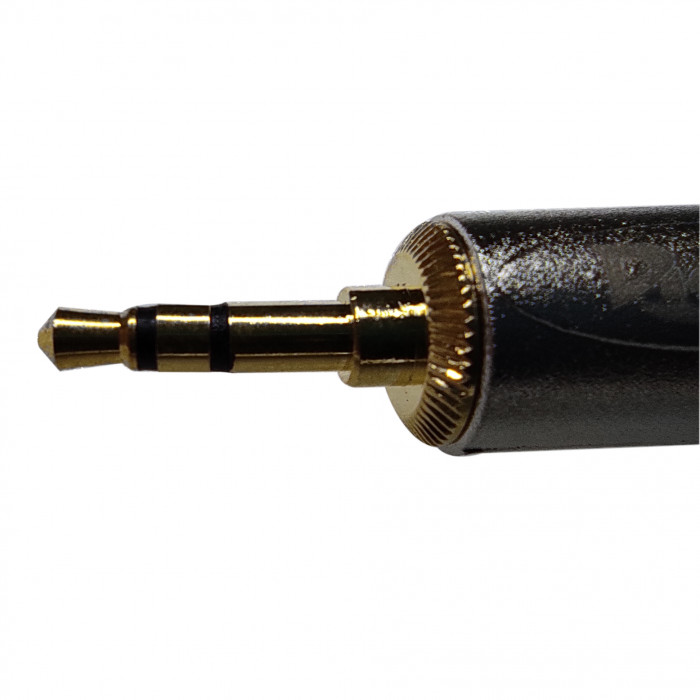

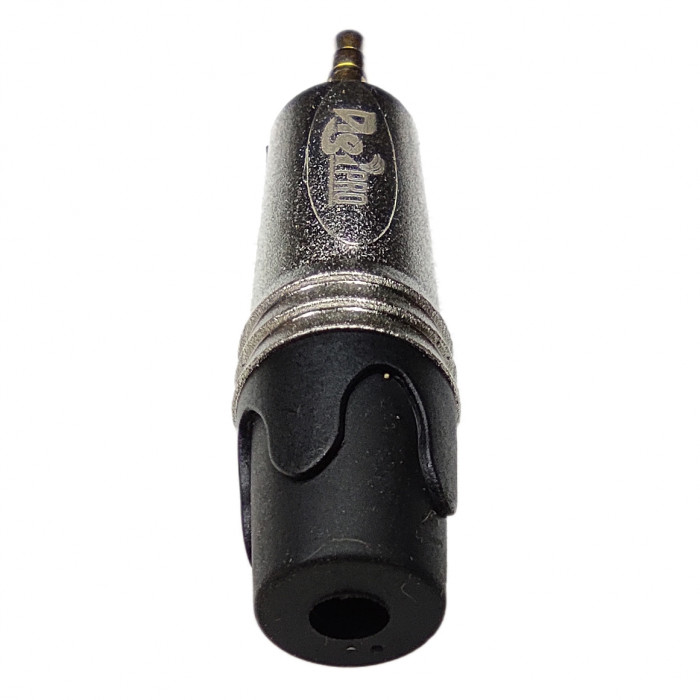

3.5mm EP Stereo Jack Connector |
DigiPro DTP3C |
3 pole ¼ inch professional phone plug, Nickel housing, Nickel contacts
• Professional phone plug with robust metal shell and chuck type strain relief.
• Rugged diecast metal shell
• Chuck type strain relief for optimum cable protection
• Precision machined one-piece contacts - avoid hook up of tip contact
• Meets all prevailing standards
Product
• Title: DTP3C
• Connection Type: Plug
• Gender: male
Electrical
• Contact resistance: depends on mating connector m ohms
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 G ohms (initial)
• Rated current per contact: depends on mating connector A
• Rated voltage: < 50 V
Mechanical
• Cable O.D.: 4 - 7 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 1 mm²
• Wiresize: 18 AWG
• Wiring: Solder contacts
Material
• Bushing: Polyacetal (POM) + PU
• Contact plating: 2 µm Ni (Su)
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
Environmental
• Standard compliance: IEC 60603-11 / EIA RS-453
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C
3.5mm EP Stereo Jack Connector
DigiPro DTP3C
