• Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
• Output Processing Channels: 16
• 16 aux buses, 6 matrices, main LRC: 100
• Internal Effects Engines (True Stereo / Mono): 16
• Internal Show Automation (structured Cues / Snippets): 500 / 100
• Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
• Signal Processing: 40-Bit Floating Point
• A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)
• D/A Conversion (stereo, 96 kHz ready): 120 dB Dynamic Range (A-weighted*)
• I/O Latency (Console Input to Output): 0.8 ms
• Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

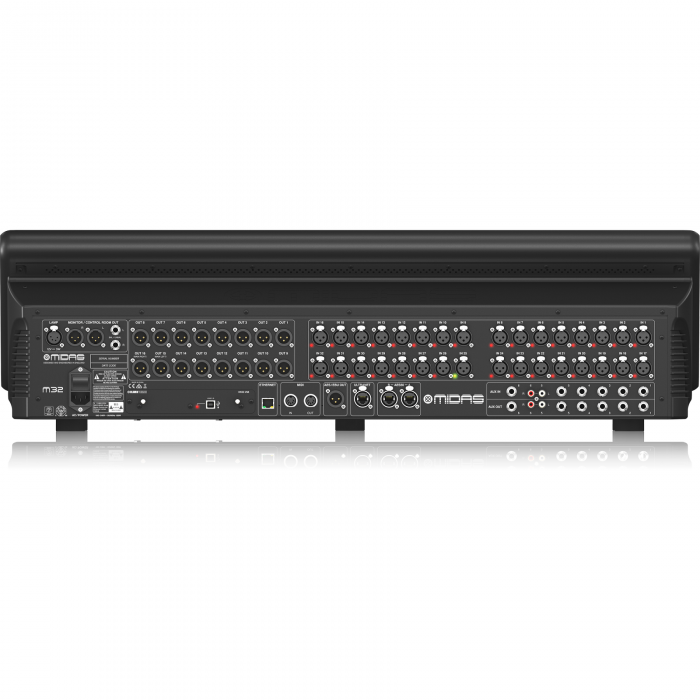

Connectors
• MIDAS PRO Series Microphone Preamplifier (XLR): 32
• Talkback Microphone Input (XLR): 1
• RCA Inputs / Outputs: 2
• XLR Outputs: 16
• Monitoring Outputs (XLR / ¼" TRS Balanced): 2
• Aux Inputs/Outputs (¼" TRS Balanced): 6
• Phones Output (¼" TRS): 2 (Stereo)
• Digital AES/EBU Output (XLR): 1
• AES50 Ports (KLARK TEKNIK SuperMAC): 2
• Expansion Card Interface: 32 Channel Audio Input / Output
• ULTRANET P-16 Connector (No Power Supplied): 1
• MIDI Inputs / Outputs: 1
• USB Type A (Audio and Data Import / Export): 1
• USB Type B, rear panel, for remote control: 1
• Ethernet, RJ45, rear panel, for remote control: 1

Mic Input Characteristics
• Design: MIDAS PRO Series
• THD+N (0 dB gain, 0 dBu output): <0.01% (unweighted)
• THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% (unweighted)
• Input Impedance (Unbalanced / Balanced): 10 kO / 10 kO
• Non-Clip Maximum Input Level: +23 dBu
• Phantom Power (Switchable per Input): +48 V
• Equivalent Input Noise at  +45 dB gain (150 ? source): -125 dB (22 Hz-22 kHz, unweighted)
• CMRR at Unity Gain (Typical): >70 dB
• CMRR at 40 dB Gain (Typical): >90 dB

Input/Output Characteristics
• Frequency Response at 48 kHz Sample Rate: 0 dB to -1 dB (20 Hz-20 kHz)
• Dynamic Range, Analogue In to Analogue Out: 106 dB (22 Hz-22 kHz, unweighted)
• A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB (22 Hz-22 kHz, unweighted)
• D/A Dynamic Range, Converter and Output (Typical): 109 dB (22 Hz-22 kHz, unweighted)
• Crosstalk Rejection at 1 kHz, Adjacent Channels: 100 dB
• Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
• Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 O / 50 O
• Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
• Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
• Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
• Output Impedance, TRS (Unbalanced / Balanced): 50 O / 50 O
• Phones Output Impedance / Maximum output Level: 40 O / +21 dBu (Stereo)
• Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz unweighted
• Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz unweighted
• Residual Noise Level, TRS and Monitor out XLR Connector: -83 dBu 22 Hz-22 kHz unweighted

Display
• Main Screen: 7" TFT LCD, 800 x 480 Resolution, 262k Colours
• Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
• Main Meter: 24 Segment (-57 dB to Clip)

Power
• Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
• Power Consumption: 120 W

Physical
• Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
• Dimensions: 891 x 612 x 256 mm (35.1 x 24.1 x 10.1")
• Weight: 25 kg (55 lbs)

• Designing A Future Classic
• Our goal for M32 was to combine the best of classic British console designs with advanced modern technology to completely redefine what a medium-format live console can offer.
• We began the industrial design process by drawing inspiration from a somewhat unexpected source – the luxury and high-performance car industry.

Why High-Performance Cars?
• Simply because the design teams at Aston Martin*, Bentley*, Rolls Royce*, and other leading manufacturers are skilled at introducing innovative technological advancements while simultaneously maintaining the feel, essence, and intangible qualities of their cherished brands. And in essence, that’s the challenge we too faced when creating the M32 console.

• So in order to create a future-forward design that took the MIDAS legacy even further, we enlisted the help of Rajesh Kutty, a leading industrial designer known for his work with celebrated luxury auto manufacturers such as Bentley, etc.

• Kutty started by examining the design elements that have made MIDAS consoles so highly sought after – from the straightforward, logical layout to the unparalleled usability and ergonomics. These are characteristics that live sound engineers around the world have come to rely on, and are key aspects of the MIDAS legacy.

• With these design elements in mind, Kutty set forth to create a styling that would be modern, innovative, futuristic, and stunningly elegant.

• Many different construction materials were tested. Countless design variations were explored. And in the end, a styling was chosen that represented the perfect marriage between aerodynamic artistry and uncompromising performance. The design is both ultramodern and distinctly classic at the same time.


The Landmark in Console History
• A close look at M32 reveals that the styling is completely new in every sense of the word. Rajesh Kutty’s automotive-inspired design elements mesh perfectly with a recognisable MIDAS signature, setting the M32 apart from any other console. Its beautifully streamlined and elegant form factor completely revolutionises the experience of live mixing.

• The MIDAS M32 construction is equally impressive, and is designed to offer you years of reliable performance while withstanding the demanding environment of live performance venues. M32 employs a predominantly space-frame construction, with parts of the sub-frame consisting of durable and lightweight carbon fibre and aluminium. Multiple alloys have been employed throughout to guarantee maximum component efficiency and an improved performance-to-weight ratio.

• The M32 is an innovative, evolved design that brings together modern construction principles and high-tech materials into a styling destined to go down as a landmark in console history.

MIDAS is the Epitome of Excellence"
• In 2013, MIDAS approached me to create a new design language for MIDAS and with it a new mixing console. Having designed for Bentley, I am intimately familiar with the challenge of transforming a brand while retaining the precious heritage – in this case the 40 year old iconic British mixing console brand MIDAS.

• Representing the pinnacle of its industry, MIDAS is the Epitome of Excellence. When it comes to ergonomics, performance and style, the aspects of a high-performance luxury carequally apply to a high-end mixing console. I was given a blank sheet of paper for my choice of materials. This meant considering lightweight materials such as carbon fibre and aluminum, while using a sophisticated steel construction, for high-impact structural areas.

• High attention was paid to the tactile elements such as fader knobs and the illumination to work under all background conditions.

• From the onset the idea was to break the mould! Hence the form study deliberately tried to break away from the static, bulky feel of today's mixing consoles. Instead making it more dynamic, ergonomic, yet luxurious. Colours, size, mobility and hardware were given equal importance to arrive at the M32 - a true projection of the brand, today.

• I am very happy with the outcome of the M32, and feel honoured to have my name associated with MIDAS.

Industry-Leading 192 kHz Precision
• The groundbreaking M32 console combines legendary Midas sound quality with advanced digital technology, future-proof floating point audio engine, extremely low-latency design and industry-leading 192 kHz ADC and DAC converters, creating a revolutionary mid-format live console.

• M32 features ultra-sleek styling, offering you a truly luxurious mixing experience. High-end construction materials include carbon fibre provide unparalleled durability and strength, plus substantially lower weight than comparable consoles.

• The M32 utilises award-winning Midas PRO Series microphone preamplifiers and the custom-designed Midas PRO motorised faders that are rated for 1 million life cycles-three times more than other leading consoles.
The Midas M32 is a future-forward console that completely raises the bar for live mixing.

Legendary MIDAS Sound Quality
• While the MIDAS M32 design, styling, and construction will surely turn a lot of heads, it’s the sound that matters most to engineers and performing artists. And that’s where M32 shines even brighter – as the latest in a long line of pristine-sounding MIDAS consoles, it descends from a celebrated lineage that literally set the standard in electrical design and sound quality. Ever since MIDAS consoles first found fame 40 years ago with acts like Billy Joel, Yes, The Beach Boys, Pink Floyd and others, the MIDAS legacy has always been about uncompromising quality and the ultimate in sound reproduction.

• Backing the analogue input section are audiophile Cirrus Logic multi-channel 192 kHz capable A/D converters, which boast a 114 dB dynamic range, ensuring impressively low distortion and low noise performance.

Built for Tomorrow
• The M32 is a console built for today, and tomorrow – its rock-solid proprietary operating system and the 0.8 ms audio engine provide outstanding state-of-the-art audio performance for years to come.

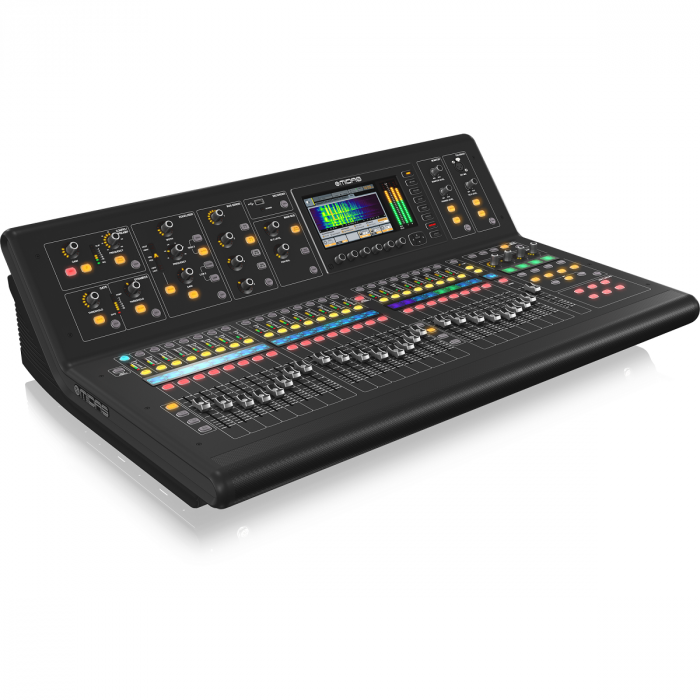

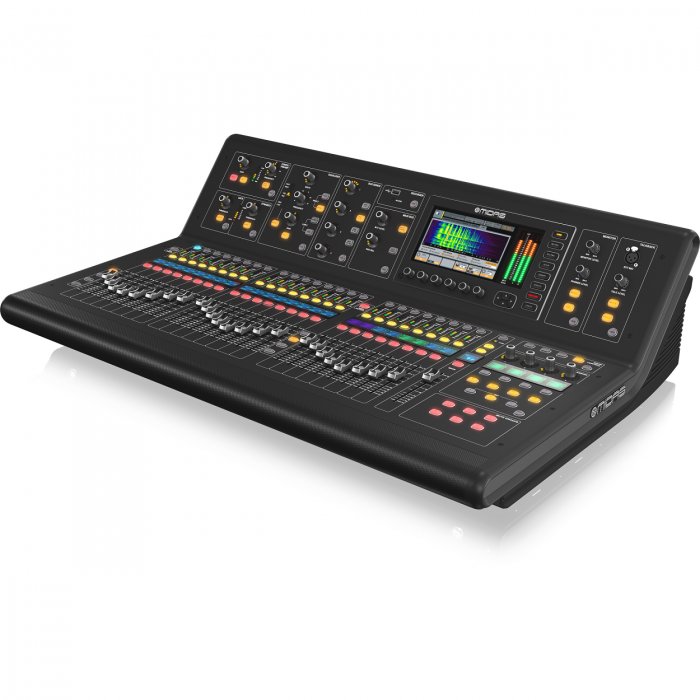

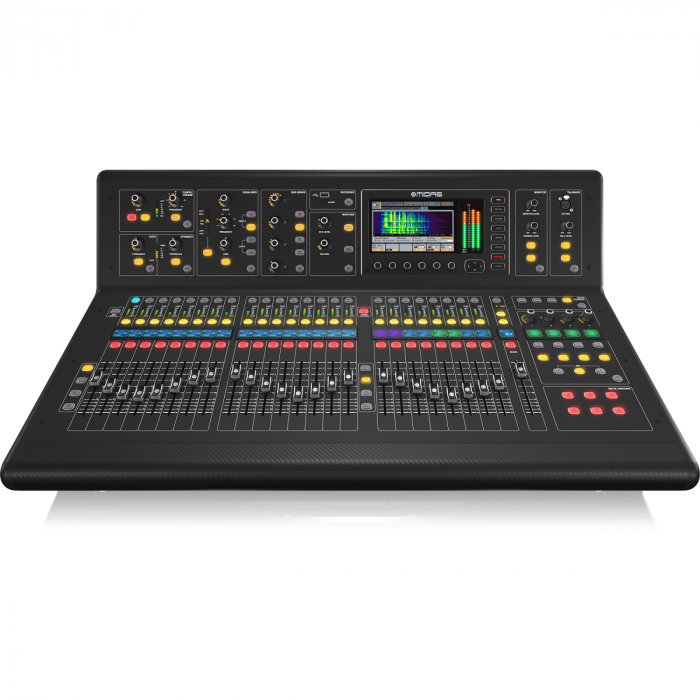

Midas M32 Digital Mixing Console
