The high-power SV-215S delivers formidable bass and SPL from compact dimensions, its extended low-bass response and efficiency make it an ideal partner for the SV series full-range loudspeaker systems. Offering tight, high definition and distinctive low frequency audio down to 39 Hz. The SV-215S dual, premium Fane, high-excursion, 15 inch (4 inch voice coil) drivers ensure consistent performance even after hours of use. Every note can be heard clearly even when successive bass notes are played in rapid succession.

• 1600 W AES power handling.
• 131 dB continuous SPL output.
• Equipped with premium Fane drivers.
• 39 - 2500 Hz usable frequency range.
• Void-free birch plywood enclosure construction.
• Proprietary RockTex paint finish with matt black topcoat.
• Twin Neutrik Speakon NL4 connectors.
• 35 mm pole mount adapter.

• Power Handling: 1600 W (AES)
• Program Power Handling: 3200 W
• Peak Power Handling: 6400 W
• Nominal Impedance: 4 ohms
• Average Sensitivity: 100 dB at 1W/1m
• Calculated Max SPL / 1m: 131 dB continuous
• Max SPL (Program): 134 dB
• Max SPL (Peak): 137 dB
• Frequency Response (-6dB): 39 - 2500 Hz
• Manufacturing Consistency: ± 3 dB from 100 to 1,000 Hz
• Nominal Directivity (-6dB): Omnidirectional
• Recommended Amplifier: 2400 W at 4
• Recommended Low Cut (Full Range): N/a
• Recommended Low Cut (with sub): N/a
• Crossover: No, active usage only, Fane recommended DSP
• Low Frequency Driver: 2 Fane transducers, 8 impedance, 15 inch (380 mm) diameter, 4 inch high temperature voice coil on glass fibre former
• High Frequency Driver: N/a
• Recommended Crossover: LPF 80 - 150 Hz, 24 dB/ Oct Butterworth/ Linkwitz-Riley
• Nominal Size: 15 Inch
• Type: Dual Subwoofer

• Fixed supplementary bass reinforcement for medium sized clubs, bars, live music venues and theatres.
• Portable supplementary bass reinforcement for medium sized clubs, bars, live music venues and theatres.

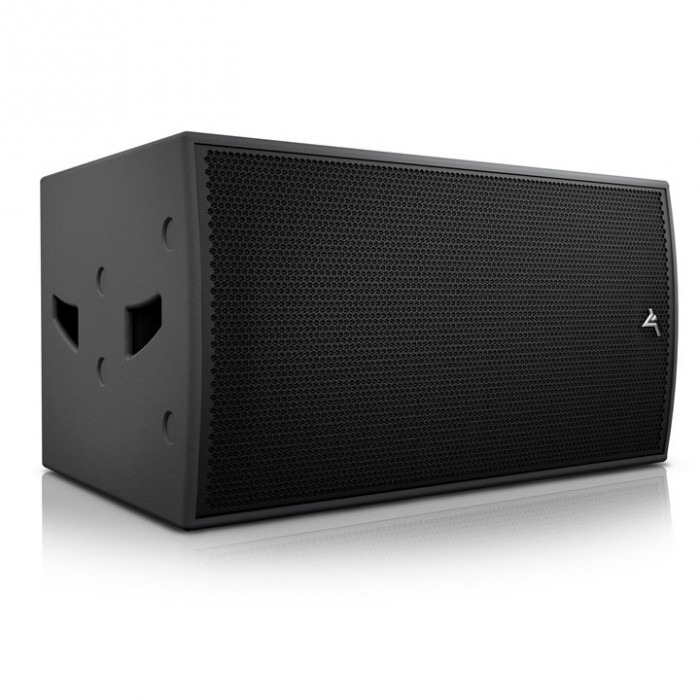

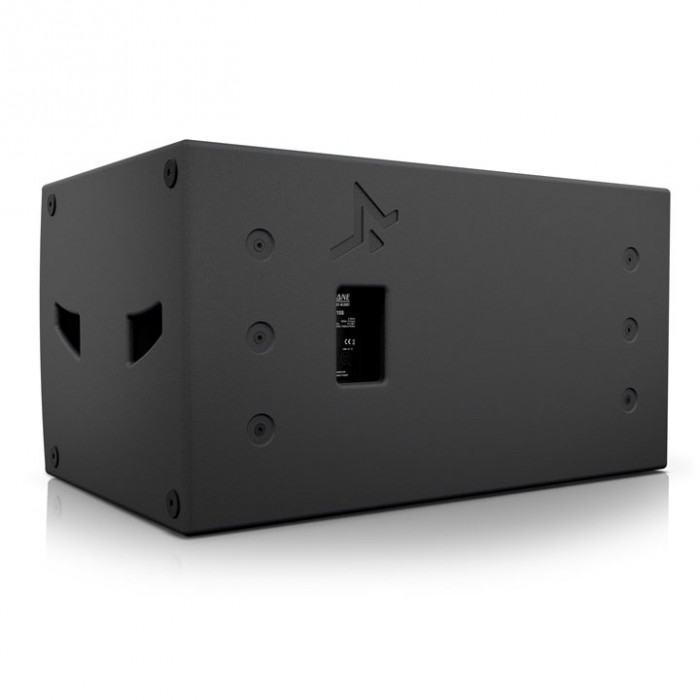

Fane Pro Audio SV-215S
Dual 15-Inch, Passive Subwoofer System
