Products detail

Montarbo R110 Active Speaker

Active Speakers

Montarbo R110 Active Speaker

Model: Montarbo R110 Active Speaker
Manufacturer: Montarbo |Made in Italy

R110

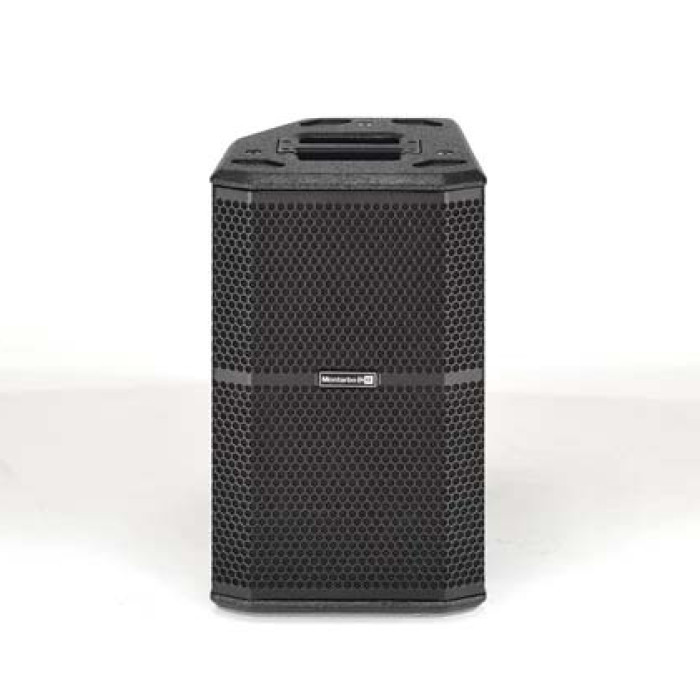

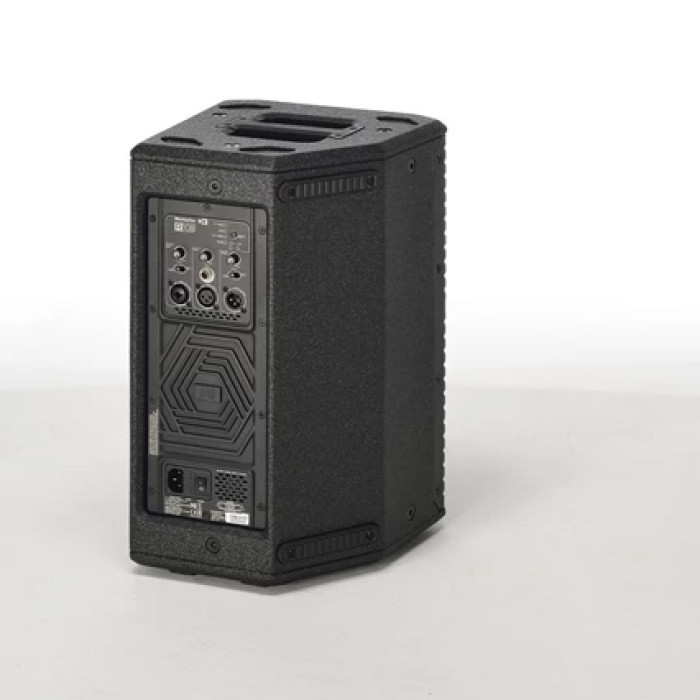

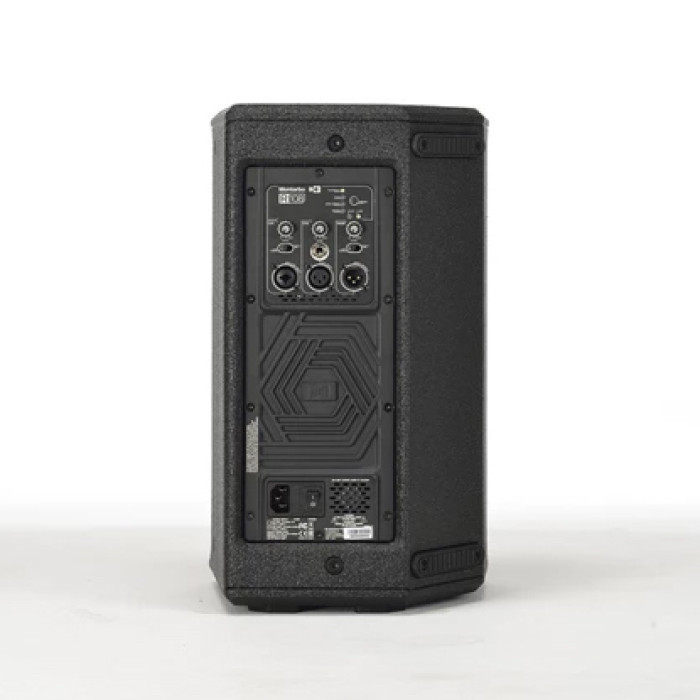

Montarbo R110 Active Speaker

Wooden active speaker R110 is a wooden active speaker, 10" with FIR Filter and 127 dB SPL

R108 is a wooden active speaker, 10" with FIR Filter and 127 dB SPL

The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.

4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.

Features
• 10" woofer, 1.35" driver
• FIR filter DSP
• 2-way bass reflex wooden speaker
Product Code: 1702000002

Montarbo R110 Active Speaker

Acoustical Data
• Speaker Type: 2-way Active bass reflex
• Frequency Response [-10 dB]: 61 Hz - 20 kHz
• Max SPL: 127 dB
• HF: 1.35" driver
• LF: 10" - 2" VC
• Dispersion: 90° H x 70° V
• Crossover Frequency: 1.78 kHz

DSP
• Advanced Functions: FIR Filters
• DSP: 28/56 Bit
• AD/DA Converter: 24 bit, 48 kHz
• Controls: Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output
• Connectors: CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M

Amplifier
• Amp Class: D + A/B
• RMS Power: 200 W
• Peak power: 400 W
• Cooling: Fan

Enclosure
• Dimensions: 304 x 505 x 305 mm [11.9” x 19.9” x 14,4”]
• Weight: 12.7 kg [28 lb]
• Cabinet: Multilayer wood with polyurea finish

Montarbo R110 Active Speaker
