Active Speakers
Model: | Montarbo B110 Active Acoustic LoudSpeaker |
Manufacturer: | Montarbo |Made in Italy |
B110

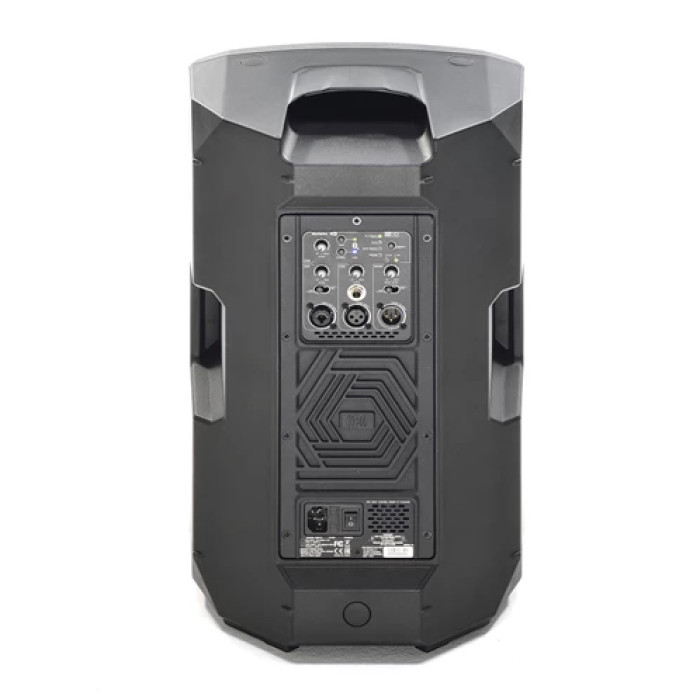

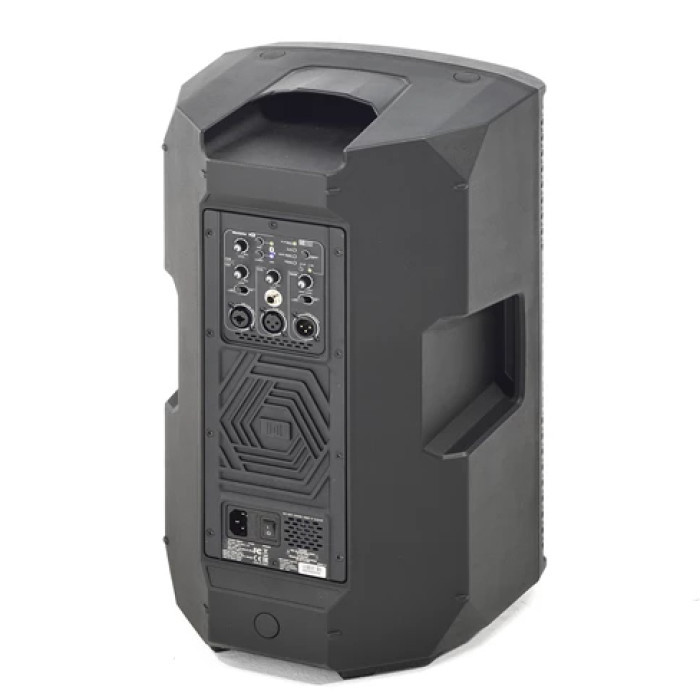

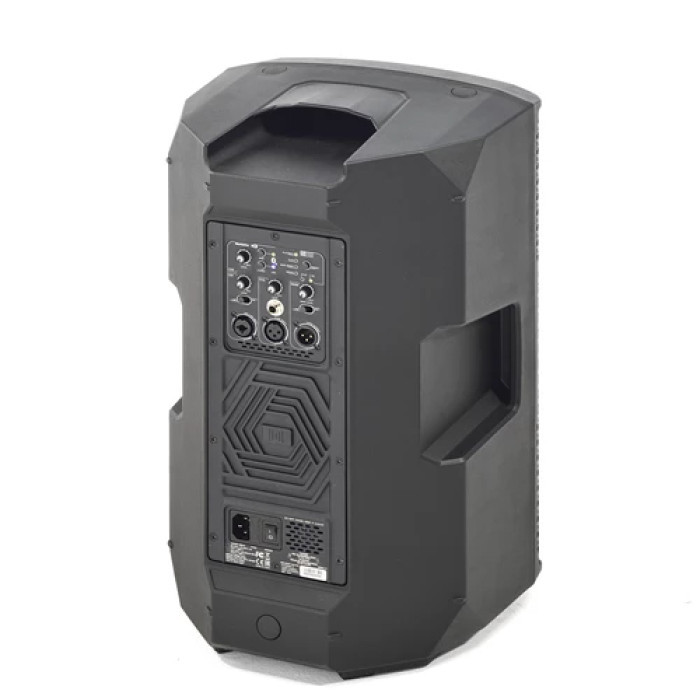

Montarbo B110 Active Acoustic LoudSpeaker |
B110 is a versatile, portable, powerful active speaker suitable for small to medium venue applications.
The bass-reflex cabinet is equipped with a 10” woofer and a 1.35 ”compression driver boosted by a 400 W amp module.
B series’ advanced DSP featuring FIR filters allows a smooth audio performance as well as an impressive dimension/sound pressure level up to 126 dB.
B series speakers feature 3 input channels (Mic/line, Line, Bluetooth) with independent levels. Bluetooth devices can be easily connected thanks to the on-board “PAIR” button.
Moreover, 4 different on-board presets allows users to optimize the audio performance for the application in use.
A clean design integrates 3 handles and rigging points for fixed installation to the lightweight polypropylene cabinet which also allows horizontal stage monitor use,thanks to a 40° inclination of 2 sides of the box (a dedicated preset wedge EQ is selectable on board). The flange for pole fixing on the bottom of the box allows users to choose a 0° or a 7.5° inclination of the cabinet placed on a standard 35 mm tripod.
Covers for transport and weather protection are available as accessories for every model in Montarbo B series.
Features
• Active 2-way speaker
• Bluetooth stereo connectivity
• 3 channel INPUT
• Advanced DSP featuring FIR filters
• 4 on-board presets
• Up to 126 dB SPL
• Wedge use
• Pole mount
• Rigging points
Product Code: 1701000002
Acoustical Data
• Speaker Type: 2-way Active bass reflex
• Frequency Response [-10 dB]: 60 Hz - 20 kHz
• Max SPL: 126 dB
• HF: 1.35" driver
• LF: 10" - 2" VC
• Dispersion: 90° H x 60° V
• Crossover Frequency: 1.8 kHz
DSP
• Advanced Functions: FIR Filters
• DSP: 28/56 Bit
• AD/DA Converter: 24 bit, 48 kHz
• Controls: Ch. levels, MAIN level, PRESET button, Channel sens. LINK/MIX selection
• Connectors: CH1: Combo CH2: XLR-F + jack 6,35mm (1/4”) AUX IN: mini-jack 3,5mm LINE OUT: XLR-M
• Bluetooth ®: 5.0 stereo
Amplifier
• Amp Class: D + A/B
• RMS Power: 200 W
• Peak power: 400 W
• Cooling: Convection
Enclosure
• Dimensions: 310 x 524.5 x 280 mm [12.2” x 20.6” x 11”]
• Weight: 11.3 kg [24.92 lb]
• Cabinet: Polypropilene
