12" - 600 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.3 Ohm
• AES Power Handling (1): 600 W
• Maximum Power Handling (2): 1200 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 50÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 18.5 mm (0.71 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.1 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 2.4 dm^3 (0.085 ft^3)
• Spider Profile: 1x variable height waves

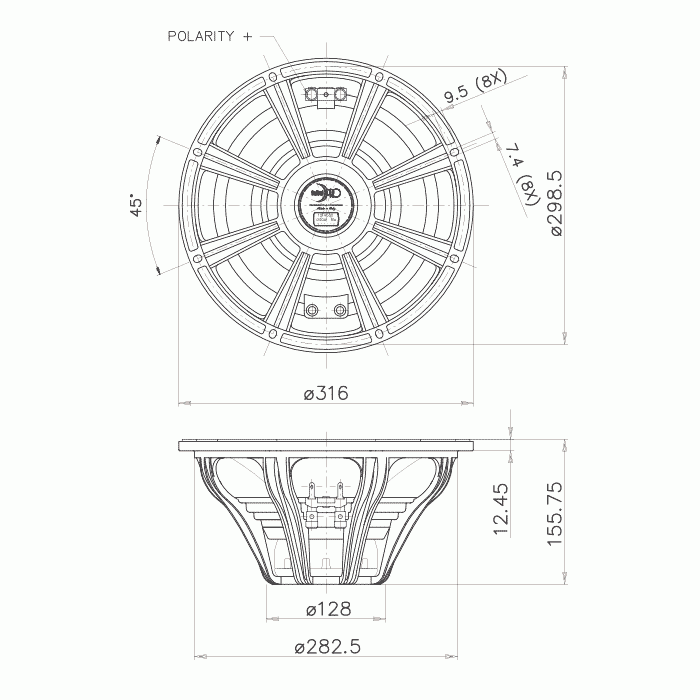

NOMINAL SPECIFICATIONS
• Nominal Diameter: 300 mm (12 in)
• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 298.5 mm (11.75 in)
• Baffle Cutout Diameter: 284 mm (11.18 in)
• Depth: 155.75 mm (6.13 in)
• Flange and Gasket Thickness: 12.5 mm (0.49 in)
• Net Weight: 4.2 Kg (9.3 lb)
• Shipping Box Single Carton Box: 350 x 346 x 21mm | (13.8 x 13.6 x 8.5 in)
• Shipping Weight: 5 Kg (11.0 lb)

THIELE AND SMALL PARAMETERS
• Fs: 50 Hz
• Re: 5.1 Ohm
• Qes: 0.30
• Qms: 11.1
• Qts: 0.29
• Vas: 73.7 dm^3 (2.60 ft^3)
• Sd: 540 cm^2 (83.70 in^2)
• Xmax (4): 7.25 mm
• Xdamage (5): 19.5 mm
• Mms: 56.0 g
• Bl: 17.3 N/A
• Le: 0.74 mH
• Mmd: 41.8 g
• Cms: 0.18 mm/N
• Rms: 1.6 Kg/s
• Eta Zero: 2.98 %
• EBP: 167 Hz

PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03003973

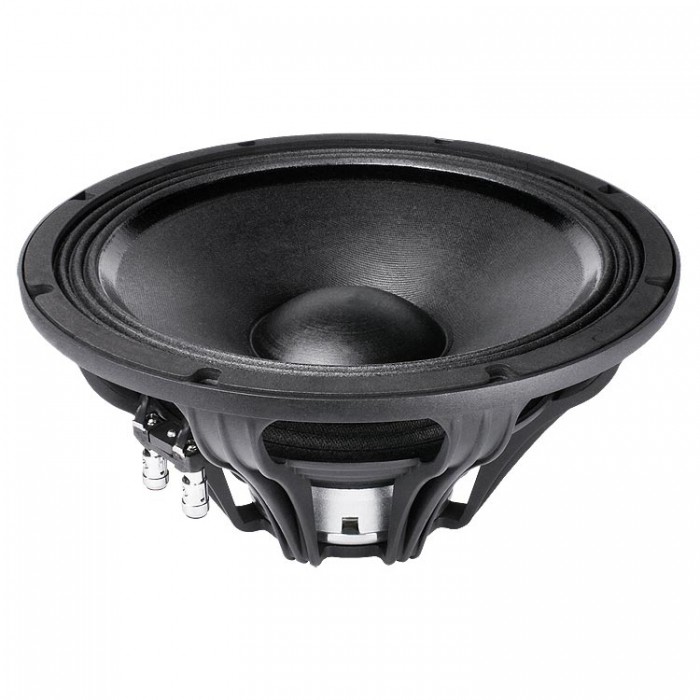

FaitalPRO 12FH520
LF Loudspeakers 8 ohms
