FaitalPro LF Loudspeakers 10HP1020 8 ohms |
10" - 700 W - 96dB |
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 7.3 Ohm
• AES Power Handling (1): 700 W
• Maximum Power Handling (2): 1400 W
• Sensitivity (1W/1m): 96 dB
• Frequency Range: 60÷2500 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 22 mm (0.87 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.3 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): M-Roll
• NET Air Volume filled by Loudspeaker: 2.2 dm^3 (0.078 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves

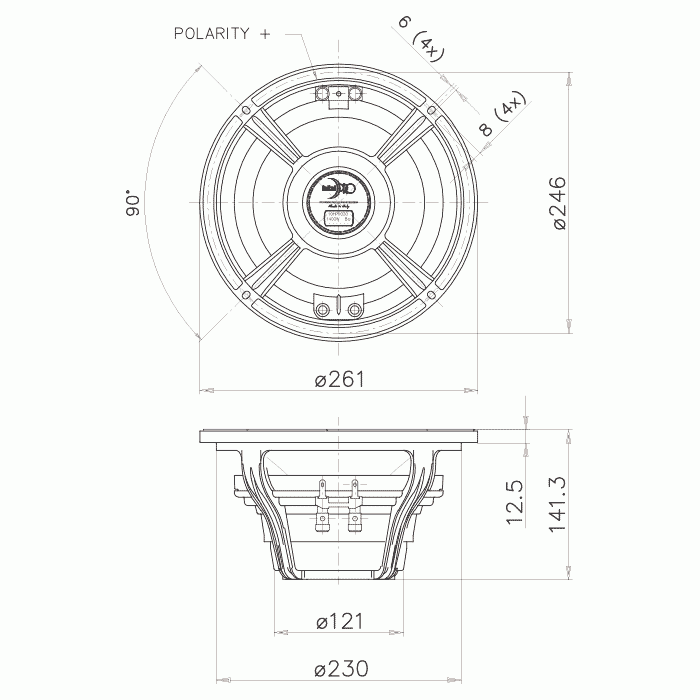

NOMINAL SPECIFICATIONS
• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 232 mm (9.13 in)
• Depth: 141.3 mm (5.56 in)
• Flange and Gasket Thickness: 12.5 mm (0.49 in)
• Net Weight; 5.2 Kg (11.5 lb)
• Shipping Box (Single Carton Box): 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
• Shipping Weight: 5.8 Kg (12.8 lb)
THIELE AND SMALL PARAMETERS
• Fs; 60 Hz
• Re: 5.5 Ohm
• Qes: 0.25
• Qms: 6.5
• Qts: 0.24
• Vas: 16.1 dm^3 (0.57 ft^3)
• Sd: 345 cm^2 (53.48 in^2)
• Xmax (4): 9.00 mm
• Xdamage (5): 12.5 mm
• Mms: 72.5 g
• Bl: 24.5 N/A
• Le: 0.85 mH
• Mmd: 65.3 g
• Cms; 0.10 mm/N
• Rms: 4.2 Kg/s
• Eta Zero: 1.35 %
• EBP: 240 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 02503939
