Loudspeakers
| Model: | 10FH530 |
| Manufacturer: | FAITAL PRO |
FaitalPro 10FH530 8 ohms LF Loudspeakers
FaitalPro 10FH530 8 ohms LF Loudspeakers |
10" - 500 W - 97 dB |
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.4 Ohm
• AES Power Handling (1): 500 W
• Maximum Power Handling (2): 1000 W
• Sensitivity (1W/1m): Sensitivity (1W/1m)
• Frequency Range: 60÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 18.5 mm (0.73 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.2 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 2 dm^3 (0.071 ft^3)
• Spider Profile: 1x variable height waves

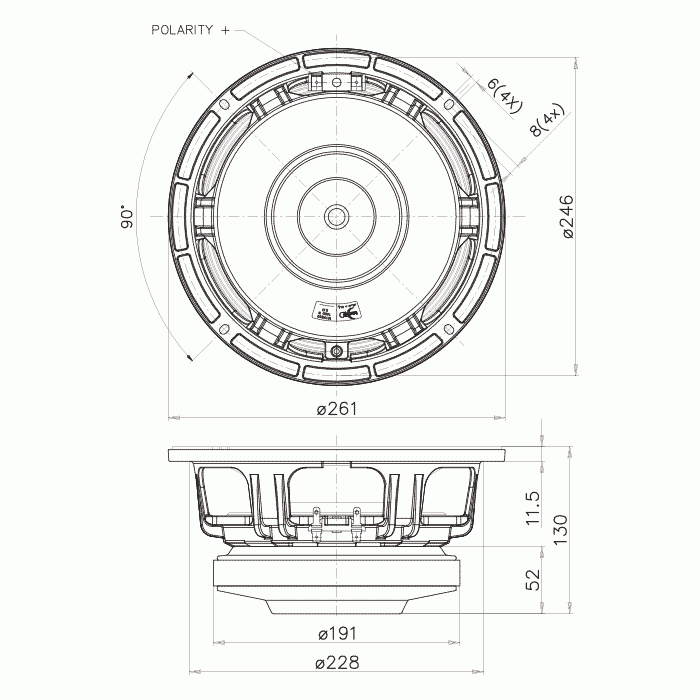

NOMINAL SPECIFICATIONS
• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 230 mm (9.06 in)
• Depth: 130 mm (5.12 in)
• Flange and Gasket Thickness: 11.5 mm (0.45 in)
• Net Weight: 7.5 Kg (16.5 lb)
• Shipping Box (Single Carton Box): 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
• Shipping Weight: 8 Kg (17.6 lb)
THIELE AND SMALL PARAMETERS
• Fs: 60 Hz
• Re: 5.1 Ohm
• Qes: 0.25
• Qms: 12.4
• Qts: 0.25
• Vas: 23.5 dm^3 (0.83 ft^3)
• Sd: 347 cm^2 (53.79 in^2)
• Xmax (4): 7.50 mm
• Xdamage (5): 18.8 mm
• Mms: 50.3 g
• Bl: 19.5 N/A
• Le: 0.8 mH
• Mmd: 43.0 g
• Cms: 0.14 mm/N
• Rms; 1.5 Kg/s
• Eta Zero: 1.94 %
• EBP: 240 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 02504149
FaitalPro LF Loudspeakers 10FH530 8 ohms
