FaitalPro LF Loudspeakers 10FH520 8 ohms |
10" - 600 W - 97 dB |
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6 Ohm
• AES Power Handling (1): 600 W
• Maximum Power Handling (2): 1200 W
• Sensitivity (1W/1m): 97 dB
• Frequency Range: 60÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 18.5 mm (0.71 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.1 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 1.7 dm^3 (0.060 ft^3)
• Spider Profile: 1x variable height waves

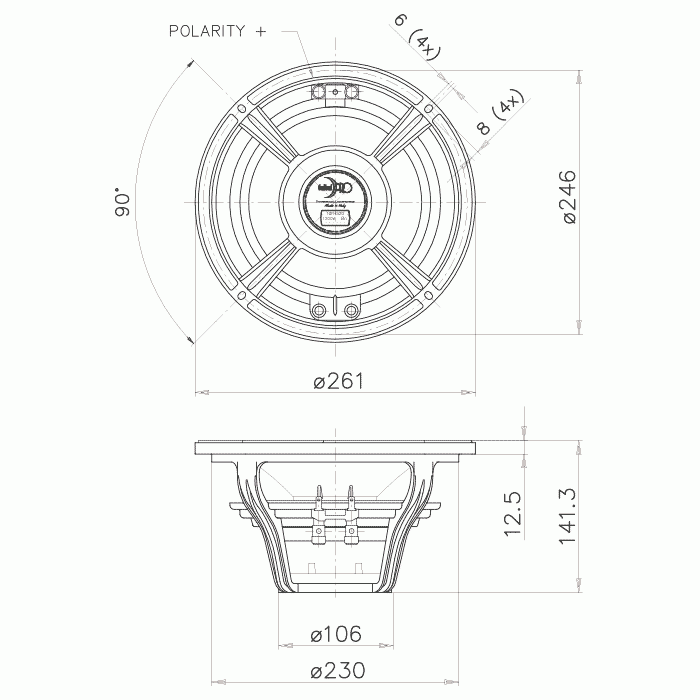

NOMINAL SPECIFICATIONS
• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 232 mm (9.13 in)
• Depth: 141.3 mm (5.56 in)
• Flange and Gasket Thickness: 12.5 mm (0.49 in)
• Net Weight: 3.7 Kg (8.2 lb)
• Shipping Box (Single Carton Box): 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
THIELE AND SMALL PARAMETERS
• Fs: 60 Hz
• Re: 5.1 Ohm
• Qes: 0.30
• Qms: 11.1
• Qts: 0.29
• Vas: 23.5 dm^3 (0.83 ft^3)
• Sd: 347 cm^2 (53.79 in^2)
• Xmax (4): 7.25 mm
• Xdamage (5): 19.5 mm
• Mms: 50.3 g
• Bl: 18 N/A
• Le: 0.9 mH
• Mmd: 43.0 g
• Cms: 0.14 mm/N
• Rms: 1.7 Kg/s
• Eta Zero: 1.65 %
• EBP: 200 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 02503972
