FaitalPro 10FH500 HF Driver 8 Ohms |
10" - 500 W - 96 dB |
TECHNICAL PARAMETERS
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.4 Ohm
• AES Power Handling (1): 500 W
• Maximum Power Handling (2): 1000 W
• Sensitivity (1W/1m): 96 dB
• Frequency Range: 60÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 18.5 mm (0.73 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.2 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 1.6 dm^3 (0.057 ft^3)
• Spider Profile: 1x constant height waves

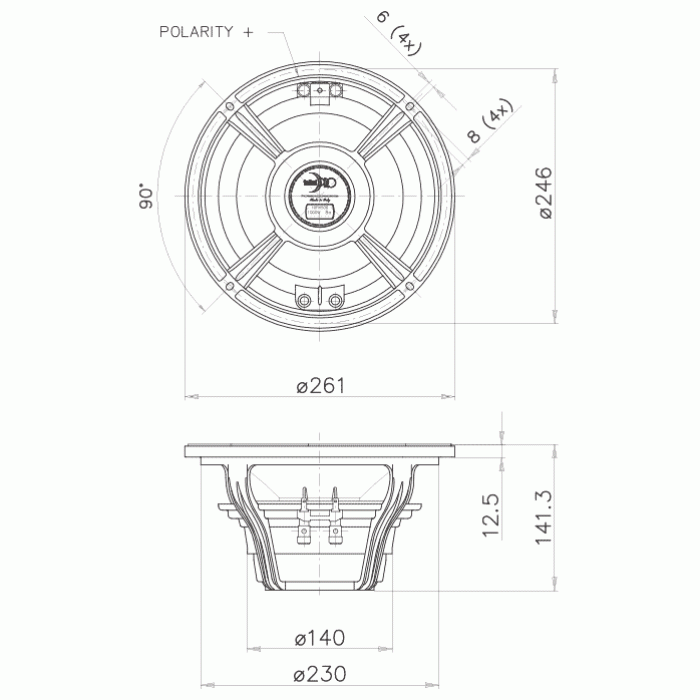

NOMINAL SPECIFICATIONS
• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Depth: 141.3 mm (5.56 in)
• Flange and Gasket Thickness: 12.5 mm (0.49 in)
• Net Weight: 3.4 Kg (7.5 lb)
• Shipping Box (Single Carton Box) - 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
• Shipping Weight - 4 Kg (8.8 lb)
• Fs: 60 Hz
• Re: 5.1 Ohm
• Qes; 0.28
• Qms: 3.3
• Qts: 0.26
• Vas: 25.8 dm^3 (0.91 ft^3)
• Sd: 351 cm^2 (54.41 in^2)
• Xmax (4): 7.50 mm
• Xdamage (5): 12.5 mm
• Mms: 47.0 g
• Bl: 17.9 N/A
• Le: 0.85 mH
• Mmd: 39.6 g
• Cms: 0.15 mm/N
• Rms; 5.4 Kg/s
• Eta Zero: 1.91 %
• EBP: 214 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 02503924
