FaitalPro 10FE200 LF Loudspeakers 0FE200 8 Ohms |
10" - 150 W - 96 dB |
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.2 Ohm
• AES Power Handling (1): 150 W
• Maximum Power Handling (2): 300 W
• Sensitivity (1W/1m): 96 dB
• Frequency Range:50÷4500 Hz
• Voice Coil Diameter: 37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 12 mm (0.47 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Flux Density: 1 T
• Magnet: Ferrite Ring
• Demodulation: No
• Cone Surround (3): Cone Surround (3): Accordion (4 waves)
• NET Air Volume filled by Loudspeaker: 0.6 dm^3 (0.021 ft^3)
• Spider Profile: 1x constant height waves

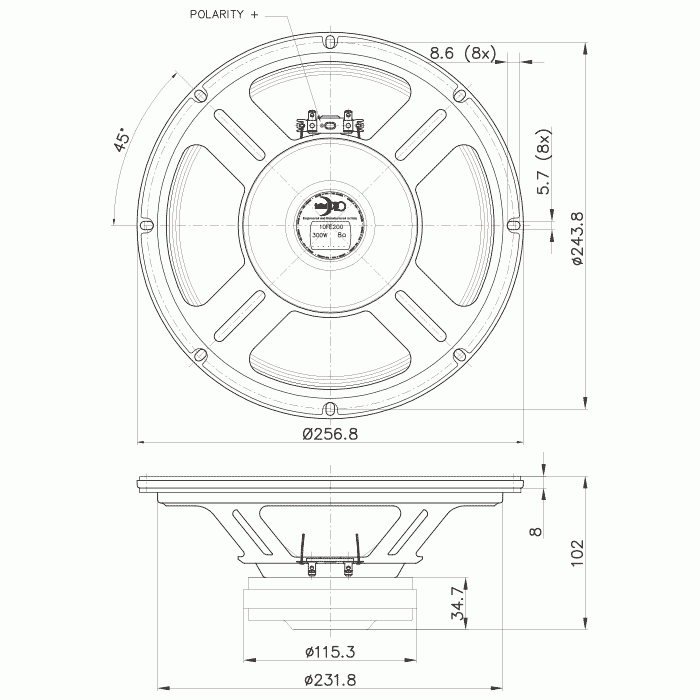

NOMINAL SPECIFICATIONS
• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 256.8 mm (10.11 in)
• Bolt Circle Diameter: 243.8 mm (9.60 in)
• Baffle Cutout Diameter: 233.8 mm (9.20 in)
• Depth: 102 mm (4.02 in)
• Flange and Gasket Thickness: 8 mm (0.31 in)
• Net Weight: 2.2 Kg (4.9 lb)
• Shipping Box (Single Carton Box): 282 x 280 x 140 mm (11.0 x 11.0 x 5.5 in)
• Shipping Weight: 2.6 Kg (5.7 lb)
THIELE AND SMALL PARAMETERS
• Fs: 55 Hz
• Re: 5.9 Ohm
• Qes: 0.74
• Qms: 11.3
• Qts: 0.69
• Vas: 61.7 dm^3 (2.18 ft^3)
• Sd: 359.7 cm^2 (55.75 in^2)
• Xmax (4): 4.67 mm
• Xdamage (5): 10.4 mm
• Mms: 24.5 g
• Bl: 8.2 N/A
• Le: 0.42 mH
• Mmd: 16.8 g
• Cms: 0.34 mm/N
• Rms: 0.7 Kg/s
• Eta Zero: 1.34 %
• EBP: 74 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 02504022
FaitalPro LF Loudspeakers 10FE200 8 Ohms
