Active Speakers
| Model: | DAB15 |
| Brand: | EXXO Professional |

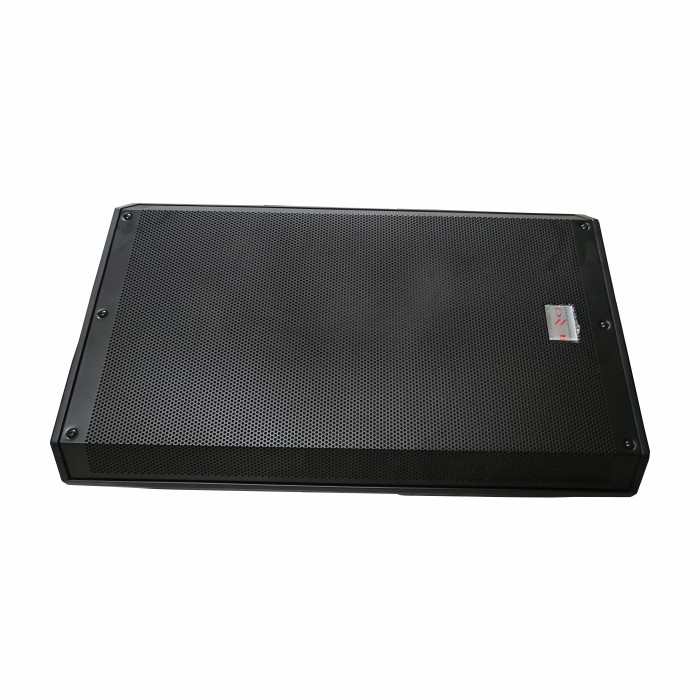

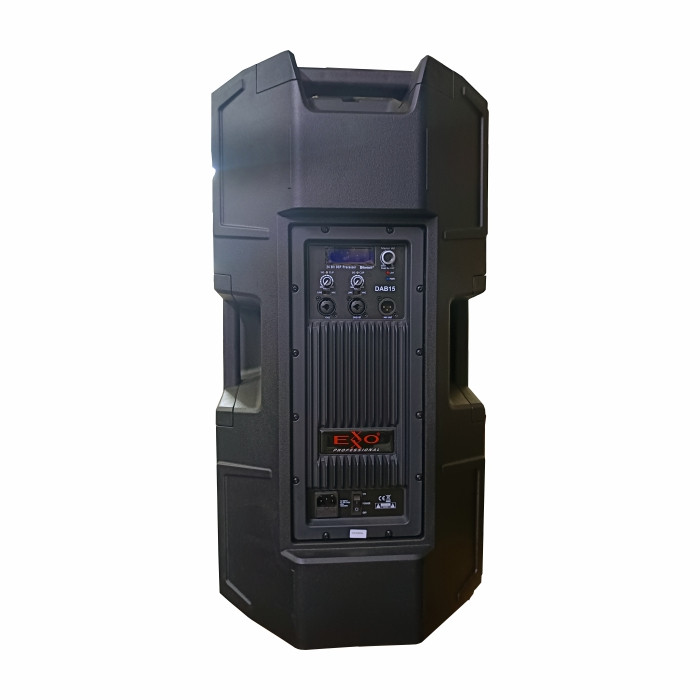

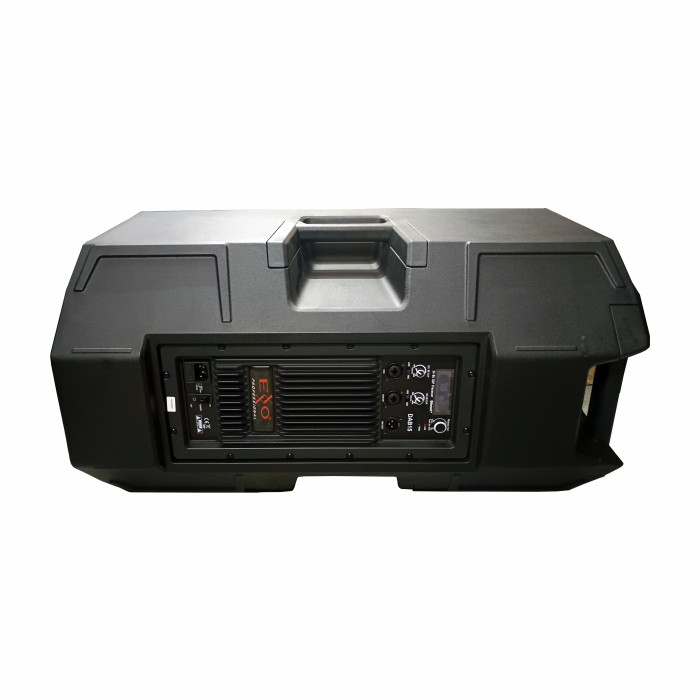

15 inch Bi-Amp 1000w Speaker
15 Inch Bi-Amp 1000w Speaker |
Exxo Professional DAB15 |
• Type: Two Way Bi-Amp
• 24 Bit DSP Processor
• Frequency Response: 50Hz-20KHz
• Sensitivity(1m/1w): 93dB
• Impedance: 4ohms
• Woofer: 1x15" 75mm 600Z
• Driver: 1.75" Titanium
• SPL: 126dB
• Bluetooth Module: yes
• DSP: 96KHz Sampling frequency 24Bit
• Amp Type: LF Class D HF Class AB
• Amp Power: LF400W +HF100W RMS
• Peak Power: LF800W+HF200W RMS
• THD: <= 0.05%
• Protections: Over Temp; Over Load; DC Protec; Over Voltage: Low Voltage: Soft start.
• Crossover: 2.0KHz
• AC input AC200-240V
• 60Hz
• T5A/250V
• Dimensions (WxHxD): 475x475x775mm
• Net Weight: 22kg
• Gross Weight: 24kg
Mode:
• LIVE(default)
• MUSIC
• SPEECH
• DJ
LOACTION
• TRIPOD(default)
• MONITOR
• WALL
• SUPEND
SUB
• OFF(default)
• 80Hz
• 100Hz
• 120Hz
• 150Mz
• 15 inch Sub
• 18 inch Sub
TREBLE
• 0dB(default)
• -12dB--+12dB
MID
• 0dB(default)
• -12dB--+12dB
BASS
• 0dB(default)
• -120B--+12dB
DELAY
• 0-115m
BLUETOOTH
• OFF (default)
• Bluetooth Connected
• TWS Connected
LOD DIM
• ON(default)
• OFF
BRIGHT
• 5(default)
• 1-10 adjust
RESET
• NO(default)
• ARE YOU SURE?
• YES OR NO
INFO
• Brand Prouduct Name
• Firmware Version
EXIT
Notice:
The display returns to the home screen after twenty second of inactivity
Mode Menu
The Mode menu is used to configure the type of sound the loudspeaker delivers Available options for this selection are: LIVE, MUSIC, SPEECH and CLUB.
LIVE is used for live sound applications. (Default)
MUSIC is used for recorded music playback.
SPEECH is used for spoken word applications.
DJ is used for recorded electronic music playback.
15 Inch Bi-Amp 1000w Speaker
Exxo Professional DAB15
