Boundary Layer Microphone
Model: | MB3 |
Manufacturer: | Crown |
boundary layer microphone
Crown MB3 |
High-performance, flush-mount boundary layer microphone |

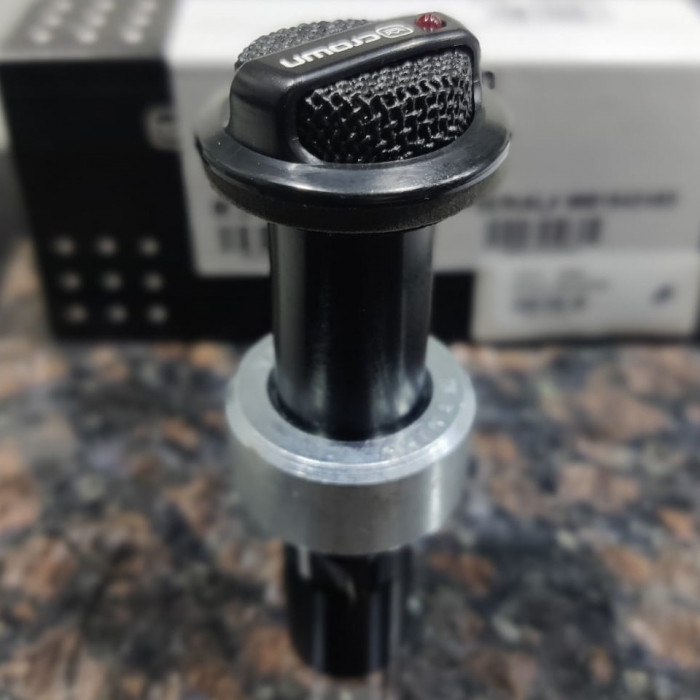

The MB3 is a high-performance, miniature boundary microphone for flush-mount installation. Thanks to its supercardioid pickup pattern, the MB3 greatly reduces ambient noise and pickup of room reverberation. The result is a clearer, more intelligible sound for applications such as teleconferencing, distance learning, boardrooms, courtrooms and security.

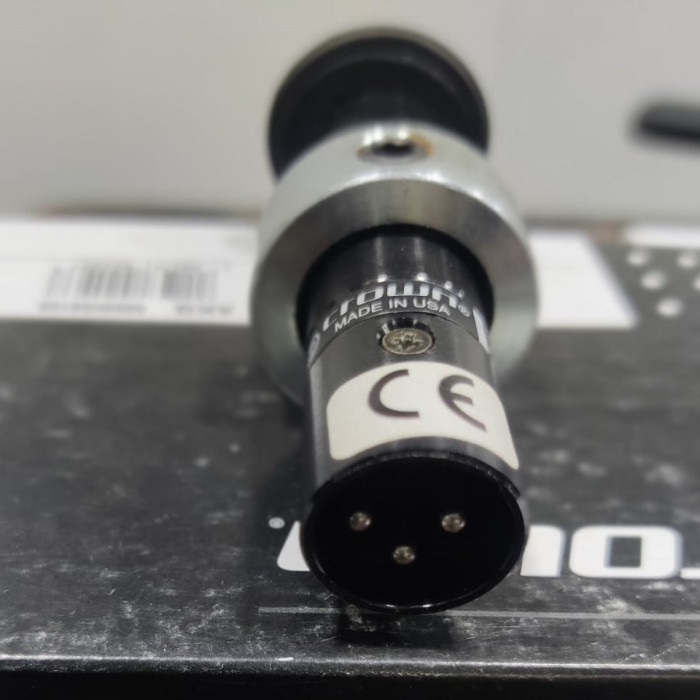

The MB3 provides a three-pin XLR-type, low-impedance, balanced mic-level output and is powered by 12 - 48V phantom power.
General Specifications:
• Audio frequency bandwidth: 50 - 15000 Hz
• Equivalent noise level: 22 dB-A
• Sensitivity: 22 mV/Pa
• Signal to Noise: 72 dB-A
• Polar Pattern: Supercardioid
Dimensions:
• Height: 84 mm
• Diameter: 27 mm
• Net Weight: 78 g
• Design: Finish - satin black
Audio Output:
• Type - Balanced XLR
• Gender - Male
• Contacts - 3-pin
Powering Interface
• Voltage - 12 to 48 V
Application:
• Conferencing - Yes
• Presentation - Yes
Device:
• Boundary Layer Microphone - Yes
Crown MB3
High-performance, flush-mount boundary layer microphone
