• 8 ohms Stereo Power - 800W x 4
• 4 ohms Stereo Power - 1200W x 4
• 8 ohms Bridge Power - 2400W x 4
• 4 ohms Bridge Power - 3200W x 4

• Frequency Response: 20Hz - 20KHz ± 0.3dB
• THD + N: <0.05% @ 8 ohms 1KHz
• S/N Ratio: >80dB
• Slew Ratio: 13V / µS
• Damping Factor: >200
• Crosstalk: >60dB @ 8 ohms 1KHz
• Input Sensitivity: 0.775V
• Input Impedance (balance/unbalance): 10K ohms / 20K ohms
• Voltage gain (sensitivity:8 ohms): 38dB
• Output Connectivity: Class TD
• Cooling: Air flow from front to rear

Protection
• Soft start, DC, Short Circuit, OverLoad,
• Clip limit, Over Heat, Progressive volume

Connector:
• Input: XLR-F, TRS, XLR-F, XLR-M
• Output: Two Red and Balck binding posts

Indicator:

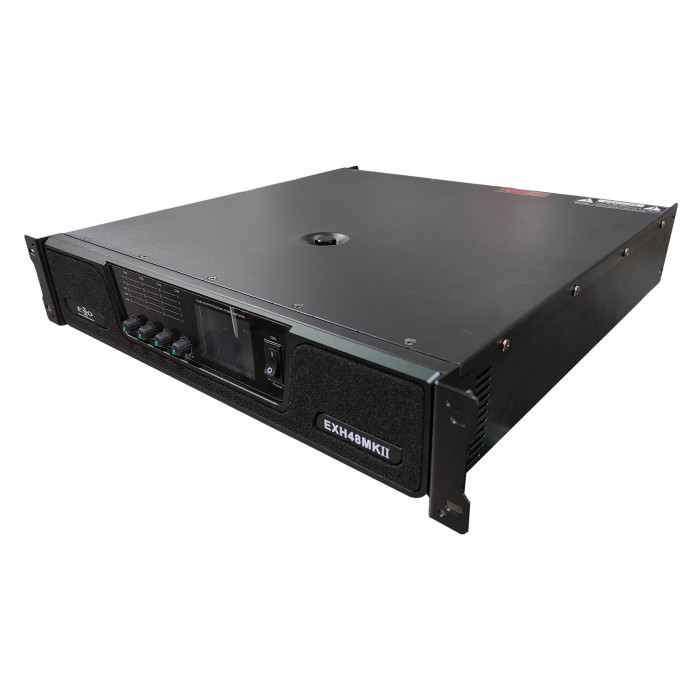

Front Panel
• Front Panel Indicator: Signal, Clip, Protect, Power indicator, Bridge,
• Parallel power switch, Volume control knob

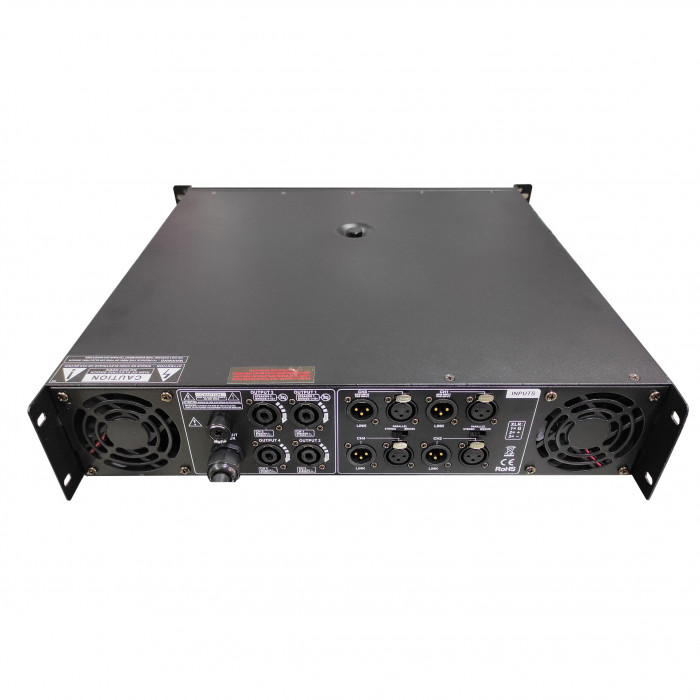

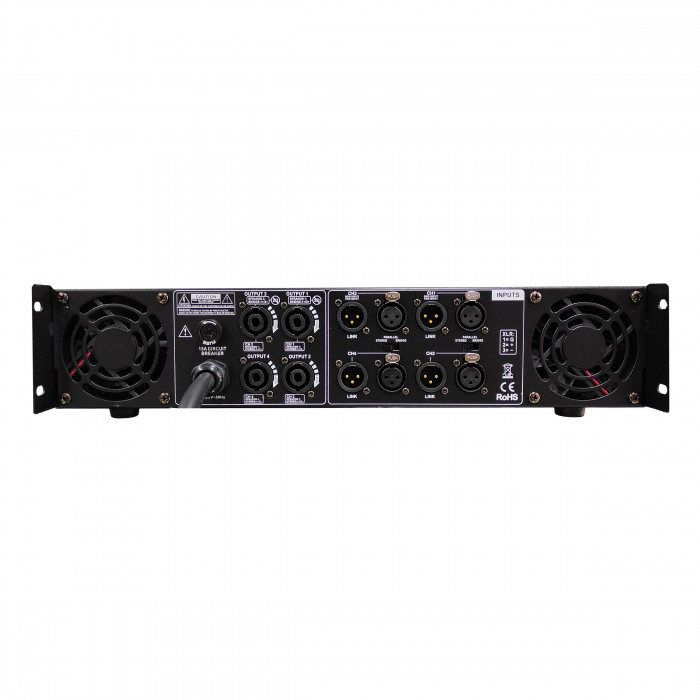

Rear Panel
• Stereo / Parallel / Bridge switch, Input sensitivity switch. low pass filter,
• high pass filter, grounding switch

Dimension & Weight:
• Product Dimensions (W x H x D): 500 x 484 x 88 mm (2U)
• Packing Dimensions (W x H x D): 599 x 568 x 155 mm
• G.W (±2.5 kg): 30 Kg

Power cord:
• Removable american 13A
• AC 110V / 60Hz ± 10%
• AC 120V / 60Hz ± 10%

The main power amplifier is adopted newly self-launched high performance Class TD technology. Compared with Class H, Class TD has more perfect in terms of recovering waveform and dynamic thermal consumption. In such situation, the amplifier is able to make long term and stable operation in the higher temperature environment.

Professional audio processing technology: linear opto-couple VCA volume control circuit (our patented technology), automatic overheat power linear gain control circuit (our patented technology), continuous output short circuit protection, high-speed low-noice DC servo power technology. Horniman (cascode) current source technology etc.

4 Channel Power Amplifier
Exxo Professional EXH48MK II
Professional Amplifier
