Active Subwoofers
| Model: | EARTH118 |
| Manufacturer: | Montarbo |Made in Italy |
Active subwoofer

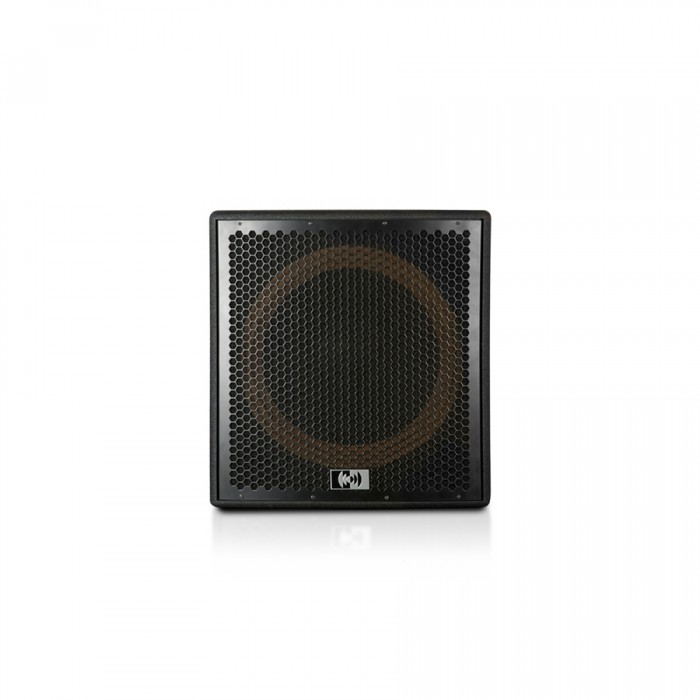

Montarbo Earth 118 |
Active Subwoofer |
Active subwoofer with a class-D amplifier and a built-in stereo Xover for driving the active full-range speakers.
The careful acoustic design provides high pressure in small sizes. The birch plywood box and high-quality transducers let EARTH118 be a high efficiency bass cabinet.
Its great quality and reliability let it be a versatile device, suitable for several environments.
FEATURES
• Equipped with one 18" custom built long excursion ferrite woofer and a class-D amplifier which provides high power and built-in stereo cross-over in a very light weight.
• 135 dB continuous SPL.
• 18" ferrite woofer with 4" voice coil.
• Class-D amplifier 1500W.
• Birch plywood cabinet, finished with anti-abrasion paint.
ACOUSTIC DATA
• Frequency Response [-3dB]: 38 Hz – 100 Hz
• Max SPL: 135 dB
• Dispersion (HxV): omni
• Crossover Frequency LPF: 100 Hz
• LF: 18”
• LF Voice Coil: 4” neodymium
• LF Type: bass reflex
AMPLIFIER
• Amp Class: D
• Peak Power: 1500 Watt
• RMS Power: 1000 Watt
PROCESSOR
• Controller: No
• AD/DA Converter: No
• System Presets: No
• Limiter: Yes
• Dual Active Peak, RMS, Thermal: Yes
INPUT SECTION
• Signal input: Dual XLR stereo input
• Signal Out: Dual Line and X-Over
MECHANIC
• Flyable: No
• Handles: Yes
• Pole mount: Yes
• Width: 506 mm
• Height: 536 mm
• Depth: 580 mm
• Weight: 39 Kg
APPLICATIONS
• Main sound system in big clubs, big theatres and open spaces.
• High quality long throw system.
• Fixed and semi-permanent installations.
Montarbo Earth 118
Active subwoofer
Montarbo Distributor in India
