Active Speakers
Model: | WIND PRO 215A |
Manufacturer: | Montarbo |Made in Italy |

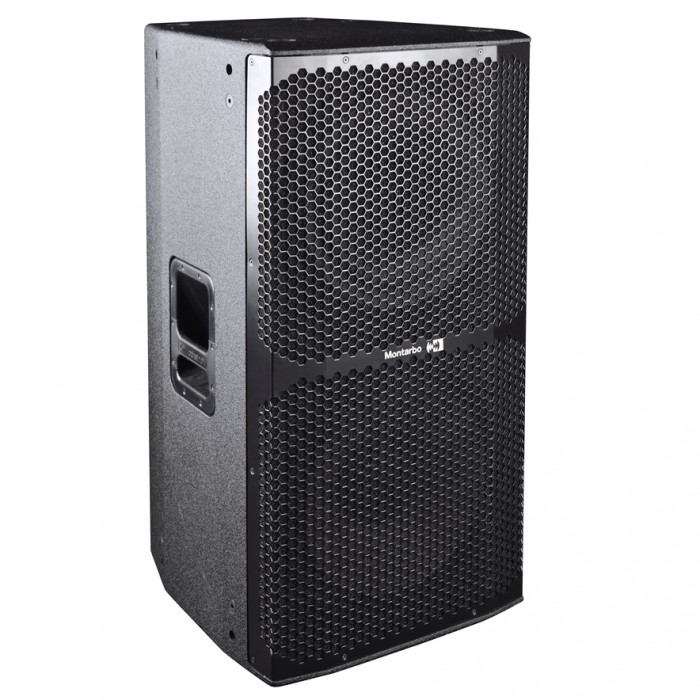

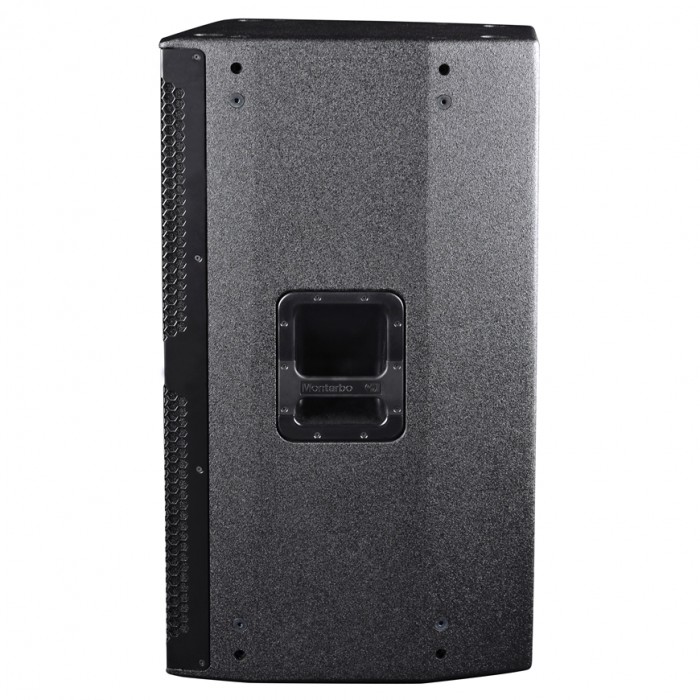

Active acoustic loudspeaker
Montarbo Wind Pro 215A |
Active acoustic loudspeaker |
Montarbo® WIND PRO 215A is an active acoustic loudspeaker designed to guarantee extremely high performances in terms of power and quality.
The “Quasi 3-Way” acoustic design, combined with a sophisticated audio signal processing system, defines the new point-source standard, result of a 1.4” high-frequency coaxially horn-loaded driver with a 15 transducer with 3” voice coil, and an additional 15” woofer with 3” voice coil.
• Very high performance-to-size ratio
• 2-channel amplifier 1200 W + 1200 W RMS
• 141 dB SPL
• Quasi 3-Way acoustic design
• 15” neodimium coaxial speaker with 3” voice coil and 1,4” driver with 2,4” voice coil
• 15” ferrite woofer with 3” voice coil
• 70° horizontal, 50° vertical coverage
• 24 Bit 96 kHz DSP with M-Modelling Technology
• Integrated DANTE
• M-Modelling Technology
• Compatible Softwares: M-Connect and M-Simulation
• Wi-Fi Connection
• M-ID authentication system via app
• Integrated Rigging
ACOUSTIC DATA
• Frequency Response [-6dB]: 55 Hz – 18 kHz
• Max SPL: 141 dB
• COAX HF: 1,4"
• COAX HF Voice Coil: 2,5"
• COAX HF Type: Driver
• COAX LF: 15" Neo
• COAX LF Voice Coil: 3"
• Dispersion (HxV): 70° x 50°
• Auxiliary LF: 15" Ferrite
• Auxiliary LF Voice Coil: 3"
• LF Type: Reflex
AMPLIFIER
• Amp Class: 2 x class D 1200 W LF + 1200 W LMF-HF
• Peak Power: 3200 watt
• RMS Power: 2400 watt
PROCESSOR
• AD/DA Converter: Yes
• System Presets: Yes 4 Factory, 4 User
• Limiter: Yes
• Dual Active Peak, RMS, Thermal: Yes

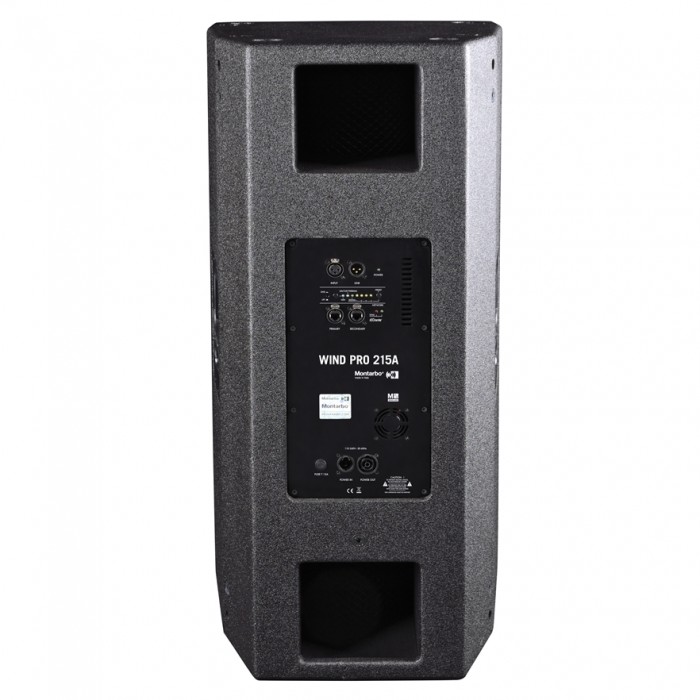

INPUT SECTION
• Signal input: 2 x XLR Analog + Dante
• Signal Out: 1 x XLR
• Ethercon Connector: Yes
HARDWARE
• Housing: Plywood
• Flyable: Yes
• Handles: Yes
• Pole mount: Yes
• Width: 440 mm (17,3 In)
• Height: 911 mm (39,0 In)
• Depth: 495 mm (19,50 In)
• Weight: 46,60 Kg (102,73 lb)
APPLICATIONS
• Theater
• Conferences
• Touring
• Rental
• Audio for System Integration
Montarbo Wind Pro 215A
Active acoustic loudspeaker
