Active Speaker - WIND PRO 210A

Active Speakers

Active Speaker - WIND PRO 210A

Model: WIND PRO 210A
Manufacturer: Montarbo |Made in Italy

Active Acoustic Loudspeaker

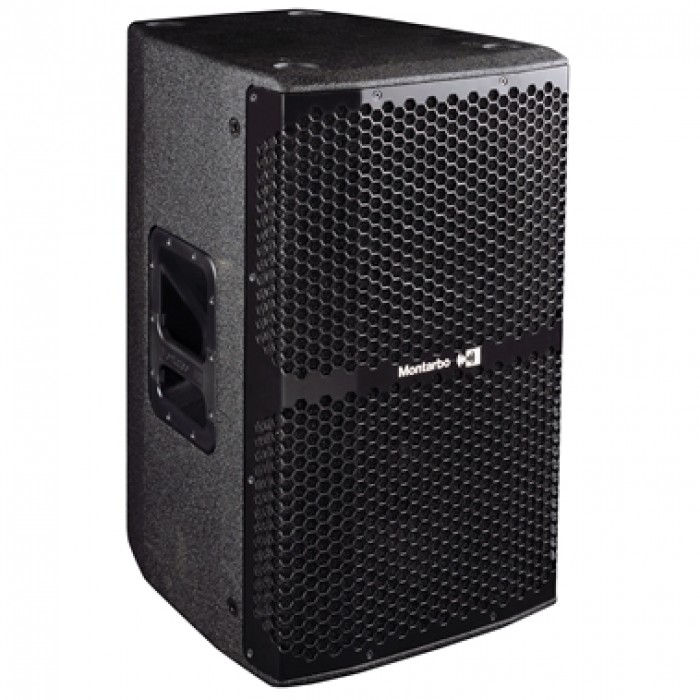

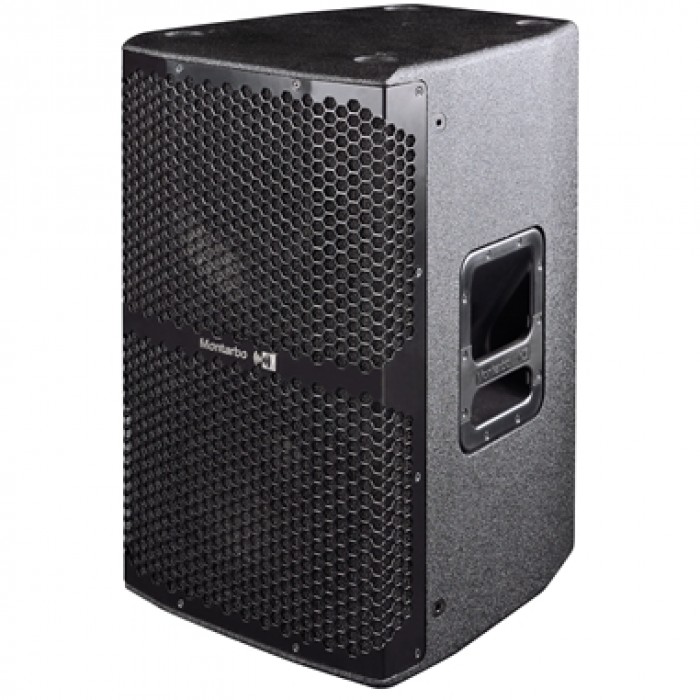

Montarbo Wind Pro 210A

Active Acoustic Loudspeaker

Montarbo® WIND PRO 210A is an active acoustic loudspeaker designed to guarantee extremely high performances in terms of power and quality.

The “Quasi 3-Way” acoustic design, combined with a sophisticated audio signal processing system, defines the new point-source standard, result of a 1.4” high-frequency coaxially horn-loaded driver with a 10” transducer with 3” voice coil, and an additional 10” woofer with 2.5” voice coil.

FEATURES
• Very high performance-to-size ratio
• 2-channel amplifier 800 W + 800 W RMS
• 135 dB SPL
• Quasi 3-Way acoustic design
• 10” ferrite coaxial speaker with 3” voice coil and 1,4” Driver with 3” voice coil
• 10” neodimium woofer with 2,5” voice coil
• 70° horizontal, 50° vertical coverage
• 24 Bit 96 kHz DSP with M-Modelling Technology
• Integrated DANTE
• M-Modelling Technology
• Compatible Softwares: M-Connect and M-Simulation
• Wi-Fi Connection
• M-ID authentication system via app
• Integrated Rigging

ACOUSTIC DATA
• Frequency Response [-6dB]: 65 Hz - 18 kHz
• Max SPL: 135 dB
• COAX HF: 1.4"
• COAX HF Voice Coil: 2.4"
• COAX HF Type: Driver
• COAX LF: 10" Ferrite
• COAX LF Voice Coil: 3"
• Dispersion (H x V): 70º x 50º
• Auxiliary LF: 10" Neo
• Auxiliary LF Voice Coil: 2.5"
• LF Type: Reflex

AMPLIFIER
• Amp Class: 2 x class D 800W LF + 800W LMF - HF
• Peak Power: 2000 watt
• RMS Power: 1600 watt
• Self-Rotating Display: No

PROCESSOR
• AD/DA Converter: Yes
• System Presets: Yes 4 Factory, 4 Users
• Limiter: Yes
• Dual Active Peak, RMS, Thermal: Yes

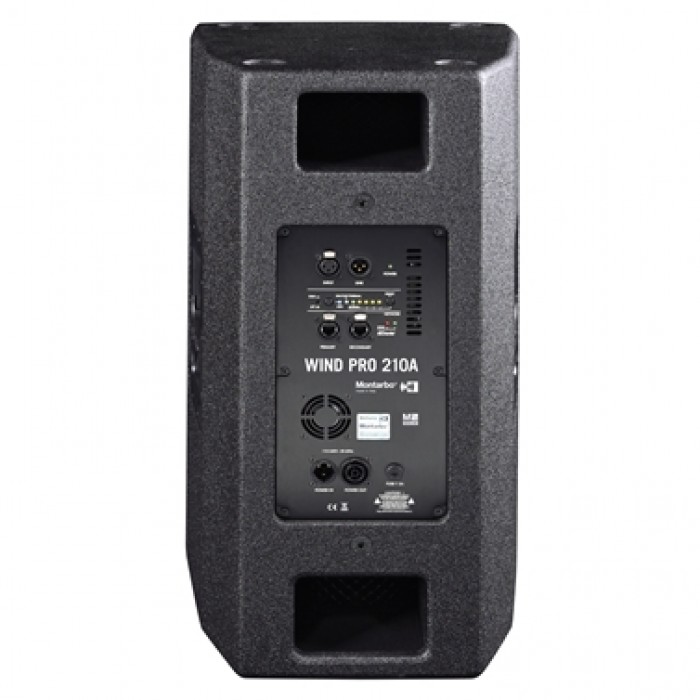

INPUT SECTION
• Signal Input: 2 x XLR Analog + Dante
• Signal Out: 1 x XLR Analog
• Ethercon Connector: Yes

HARDWARE
• Housing: Plywood
• Flyable: Yes
• Handles: Yes
• Pole mount: Yes
• Dimension: 346 x 631 x 405 mm (13.6" x 24.8" x 16.0")
• Weight: 25.80 Kg (56.87 lb)

APPLICATIONS
• Theater
• Conferences
• Touring
• Rental
• Audio for System Integration
